General terminal block featuring a 7.62mm pitch and 6 positions across 2 rows, supporting 3 poles and 3 circuits. Rated for 600V and a maximum current of 40A, this white thermoplastic component utilizes zinc-plated steel screw terminals for wire termination, accommodating wire gauges from 10AWG to 22AWG. Designed for DIN rail mounting, it boasts a UL94 V-2 flammability rating and is RoHS compliant.
Voltage Rating600V
Current Rating30A
MountingDIN Rail
Quick Jump:
Technical Specifications
Eaton NDN3-WH technical specifications.
General
| Color | White |
| Current Rating | 30A |
| Flammability Rating | UL94 V-2 |
| Height | 33.27mm |
| Insulation Material | Thermoplastic |
| Length | 42.41mm |
| Max Current Rating | 40A |
| Mount | DIN Rail |
| Number of Circuits | 3 |
| Number of Contacts | 6 |
| Number of Poles | 3 |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Number of Wire Entries | 6 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 7.62mm |
| RoHS Compliant | Yes |
| Series | Magnum® NDN |
| Terminal Finish | Zinc |
| Terminal Material | Steel |
| Termination | Screw |
| Voltage Rating | 600V |
| Weight | 0.8oz |
| Width | 23.87mm |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 10AWG |
Compliance
| RoHS | Compliant |
Datasheet
Eaton NDN3-WH Datasheet
Download the complete datasheet for Eaton NDN3-WH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

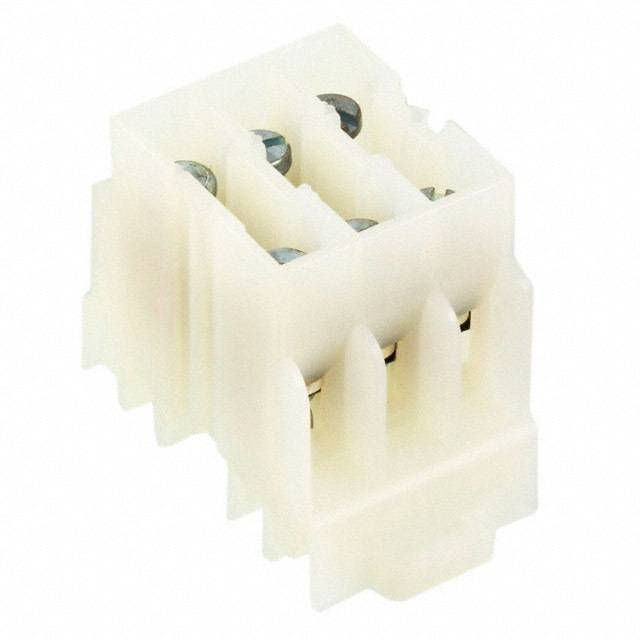

Product Images
