Axial fan, 25mm x 8mm, delivering 1.2 CFM airflow at 6000 RPM. Features sleeve bearing, 5VDC operating voltage, and 200mW power consumption. Operates within a temperature range of 14°C to 70°C with a low noise level of 5 dBA. Mounts via flanges and terminates with leads, including a 160mm lead length.
FrequencyNot RequiredHz
PackageAxial
Storage25mm
Voltage Rating5V
Quick Jump:
Technical Specifications
Ebm-Papst 255M technical specifications.
General
| Airflow | 1.2CFM |
| Bearing Type | Sleeve |
| Package/Case | Axial |
| Depth | 25mm |
| Height | 8mm |
| Lead Length | 160mm |
| Length | 25mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 14°C |
| Max Power Dissipation | 200mW |
| Mount | Flanges |
| Noise | 5dBA |
| Noise Level | 5 dBA |
| Operating Frequency | Not RequiredHz |
| Operating Supply Voltage | 5V |
| Packaging | Bulk |
| Power Consumption | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 6000RPM |
| Series | 250 |
| Size | 25mm |
| Speed | 6000RPM |
| Termination | Leads |
| Voltage Rating | 5V |
| DC Rated Voltage | 5V |
| Weight | 0.011lb |
| Width | 25mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst 255M Datasheet
Download the complete datasheet for Ebm-Papst 255M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

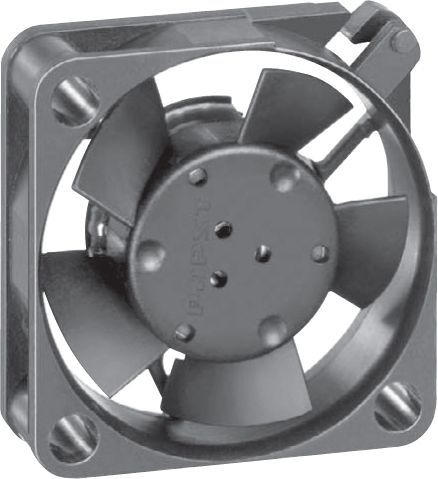

Product Images
