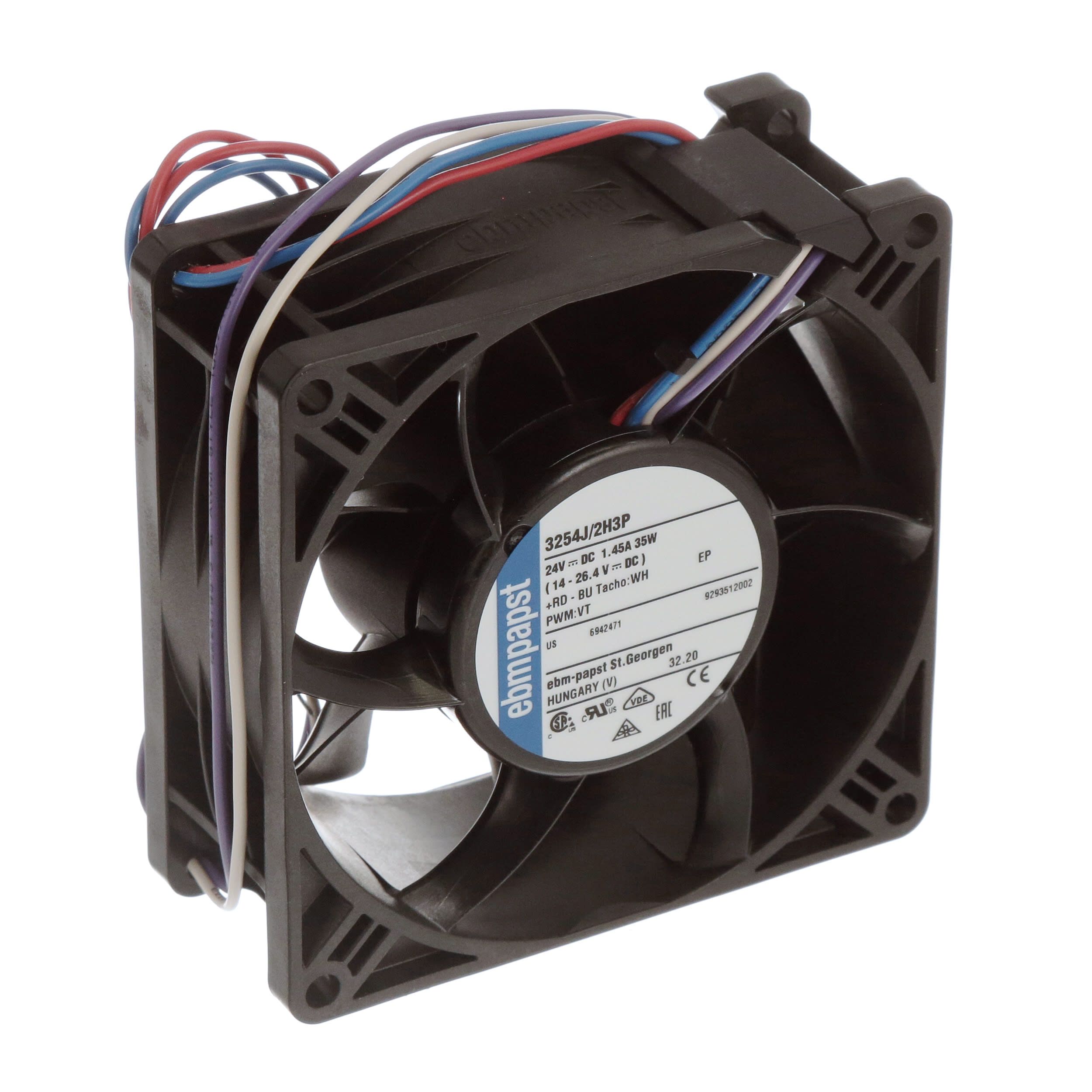

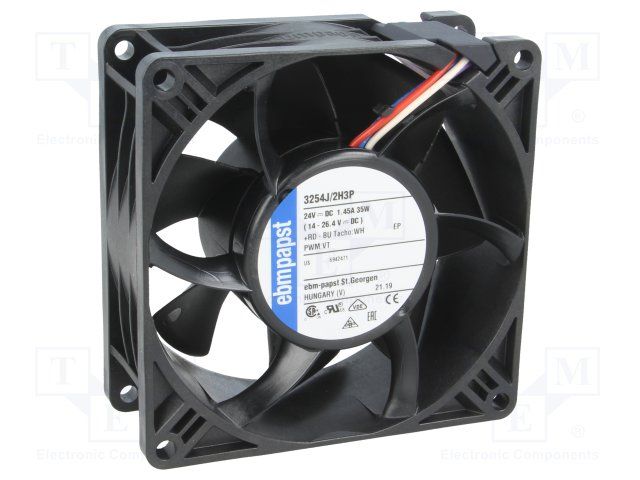

High-performance DC axial fan with 158 CFM airflow, operating at 24V and consuming 35W. Features durable ball bearings for reliable operation, a plastic construction, and wire lead termination. This fan offers a speed of 7450 RPM and operates within a temperature range of -4°C to 158°C. Mounting is facilitated by flanges, and the unit measures 92mm x 92mm x 38.15mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ebm-Papst 3254J/2H3P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Airflow | 158CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Current Rating | 1.45A |
| Depth | 38.15mm |
| Height | 92mm |
| Length | 92mm |
| Material | Plastic |
| Max Operating Temperature | 158°C |
| Min Operating Temperature | -4°C |
| Max Power Dissipation | 35W |
| Mount | Flanges |
| Noise | 64dBA |
| Noise Level | 64dBA |
| Operating Supply Voltage | 24V |
| Package Quantity | 36 |
| Power Consumption | 35W |
| Reach SVHC Compliant | No |
| RPM | 7450RPM |
| Series | S-Panther 3250J |
| Speed | 7450RPM |
| Termination | Wire Leads |
| Voltage Rating | 24V |
| Weight | 0.529lb |
| Width | 38mm |
| RoHS | Compliant |
