Axial DC fan, 92x25mm, operating at 12VDC with a 1950 RPM speed. Delivers 35.9 CFM airflow and 23 dBA noise level. Features ball bearing for durability and operates within a -4°C to 185°C temperature range. Power consumption is 800mW.
FrequencyN/R
PackageAxial
Storage92mm
Voltage Rating12V
Quick Jump:
Technical Specifications
Ebm-Papst 3412NLE technical specifications.
General
| Airflow | 35.9CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Color | Black |
| Depth | 92mm |
| Diameter | 100mm |
| Height | 25mm |
| Length | 92mm |
| Material | PVC, Plastic |
| Max Operating Temperature | 185°C |
| Min Operating Temperature | -4°C |
| Max Power Dissipation | 800mW |
| Mount | Flanges |
| Noise | 23dBA |
| Noise Level | 23dBA |
| Operating Frequency | N/R |
| Operating Supply Voltage | 12V |
| Packaging | Bulk |
| Power Consumption | 800mW |
| Radiation Hardening | No |
| RPM | 1950RPM |
| Series | 3400N |
| Size | 92mm |
| Speed | 1950RPM |
| Termination | Leads |
| Voltage Rating | 12V |
| Weight | 0.22lb |
| Width | 92mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst 3412NLE Datasheet
Download the complete datasheet for Ebm-Papst 3412NLE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

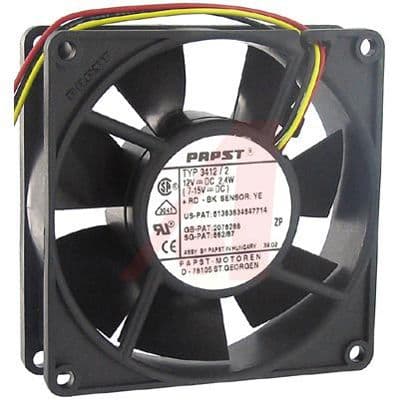

Product Images
