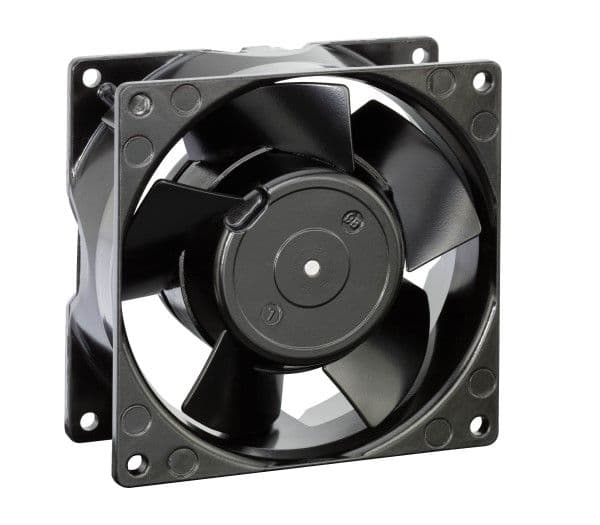

Axial fan, 92mm x 38mm, delivers 43 CFM airflow at 2500 RPM. Features Sintec bearing, 115VAC voltage rating, and 60 Hz operating frequency. With a maximum operating temperature of 176°C and minimum of 14°C, this fan offers 35 dBA noise level and 8W maximum power dissipation. Approvals include UL, CSA, VDE, and CE. Mounting is via flanges, with lead termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ebm-Papst 3500 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Airflow | 43CFM |
| Approvals | UL, CSA, VDE, CE |
| Bearing Type | Sintec |
| Package/Case | Axial |
| Height | 38mm |
| Lead Free | Lead Free |
| Length | 92mm |
| Max Operating Temperature | 176°C |
| Min Operating Temperature | 14°C |
| Max Power Dissipation | 8W |
| Mount | Flanges |
| Noise | 35dBA |
| Noise (dB) | 35dB |
| Noise Level | 35 dB |
| Operating Frequency | 60 Hz |
| Package Quantity | 25 |
| RPM | 2500RPM |
| Series | 3000 |
| Size | 92mm |
| Speed | 2500RPM |
| Termination | Leads |
| Voltage Rating | 115V |
| Weight | 0.926lb |
| Width | 38mm |
| RoHS | Compliant |
