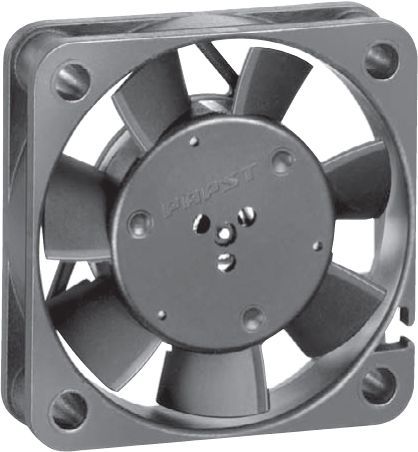

Axial DC fan, 12V operating supply voltage, delivering 4.7 CFM airflow at 5400 RPM. Features sleeve bearing, plastic construction, and a compact 40mm x 40mm x 10mm size. Operates within a temperature range of -4°C to 158°C with a maximum power dissipation of 700mW. Includes 310mm leads for termination and flange mounting.
FrequencyNot RequiredHz
PackageAxial
Storage40mm
Voltage Rating12V
Quick Jump:
Technical Specifications
Ebm-Papst 412F technical specifications.
General
Airflow
4.7CFM
Bearing Type
Sleeve
Package/Case
Axial
Depth
40mm
Height
10mm
Lead Free
Lead Free
Lead Length
310mm
Length
40mm
Material
Plastic
Max Operating Temperature
158°C
Min Operating Temperature
-4°C
Max Power Dissipation
700mW
Mount
Flanges
Noise
22.1dBA
Noise Level
22.1
dBA
Operating Frequency
Not RequiredHz
Operating Supply Voltage
12V
Packaging
Bulk
Power Consumption
700mW
Radiation Hardening
No
Reach SVHC Compliant
No
RPM
5400RPM
Series
400F
Size
40mm
Speed
5400RPM
Termination
Leads
Thickness
10mm
Voltage Rating
12V
Weight
0.038lb
Width
40mm
Compliance
RoHS
Compliant
Datasheet
Ebm-Papst 412F Datasheet
Download the complete datasheet for Ebm-Papst 412F to view detailed technical specifications.
