Axial fan, 119mm size, delivering 105.9 CFM airflow at 3200 RPM. Features ball bearing for durability and metal construction. Operates at 12VDC with a power consumption of 4.9W, suitable for temperatures from -22°C to 75°C. Approved by UL, CSA, and VDE, this fan utilizes terminal connections.
FrequencyNot RequiredHz
PackageAxial
Storage119mm
Voltage Rating12V
Quick Jump:
Technical Specifications
Ebm-Papst 4182NX technical specifications.
General
| Airflow | 105.9CFM |
| Approvals | UL, CSA, VDE |
| Bearing Type | Ball |
| Package/Case | Axial |
| Depth | 119mm |
| Height | 38mm |
| Lead Free | Contains Lead |
| Length | 119mm |
| Material | Metal |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -22°C |
| Max Power Dissipation | 4.5W |
| Mount | Flanges |
| Noise | 49dBA |
| Noise Level | 49dBA |
| Operating Frequency | Not RequiredHz |
| Operating Supply Voltage | 12V |
| Package Quantity | 25 |
| Packaging | Bulk |
| Power Consumption | 4.9W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 3200RPM |
| Series | 4100N |
| Size | 119mm |
| Speed | 3200RPM |
| Termination | Terminals |
| Voltage Rating | 12V |
| Weight | 0.86lb |
| Width | 119mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst 4182NX Datasheet
Download the complete datasheet for Ebm-Papst 4182NX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

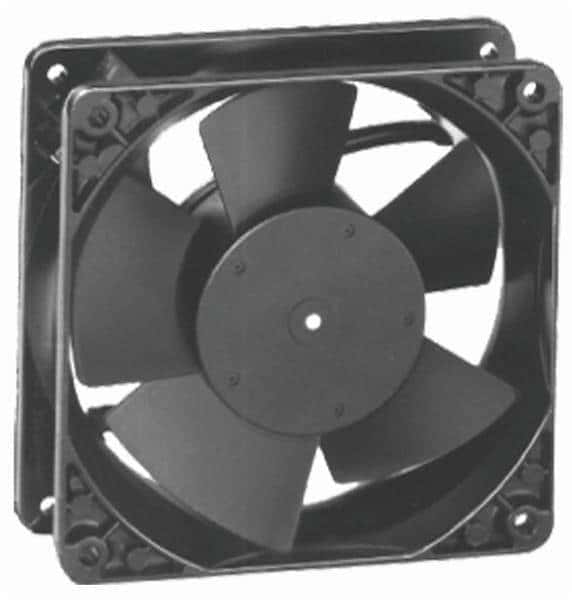

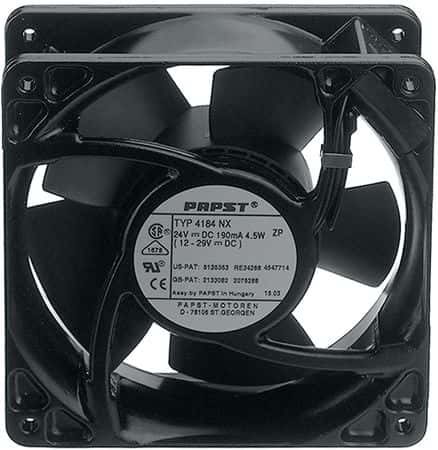

Product Images
