Axial DC fan with ball bearing, delivering 97 CFM airflow at 3050 RPM. Features a 24VDC operating voltage and a maximum power dissipation of 4.3W. Operates within a temperature range of -4°C to 75°C, with a noise level of 45 dBA. Dimensions are 119mm x 119mm x 38mm, with flange mounting and lead wire termination. Constructed from plastic and is lead-free.
FrequencyNot RequiredHz
PackageAxial
Voltage Rating24V
MountingFlanges
Quick Jump:
Technical Specifications
Ebm-Papst 4214 technical specifications.
General
| Airflow | 97CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Depth | 119mm |
| Height | 119mm |
| Lead Free | Lead Free |
| Length | 119mm |
| Material | Plastic |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -4°C |
| Max Power Dissipation | 4.3W |
| Mount | Flanges |
| Noise | 45dBA |
| Noise Level | 45 dBA |
| Operating Frequency | Not RequiredHz |
| Operating Supply Voltage | 24V |
| RPM | 3050RPM |
| Series | 4200 |
| Speed | 3050RPM |
| Termination | Lead Wire |
| Thickness | 38mm |
| Voltage Rating | 24V |
| DC Rated Voltage | 24V |
| Weight | 0.639lb |
| Width | 38mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst 4214 Datasheet
Download the complete datasheet for Ebm-Papst 4214 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

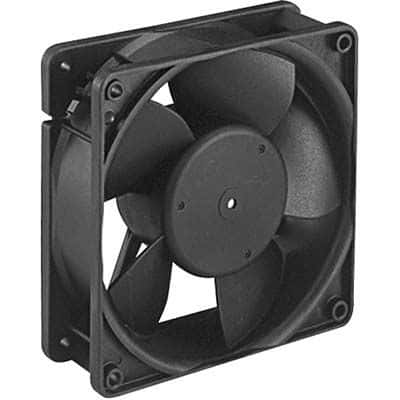

Product Images
