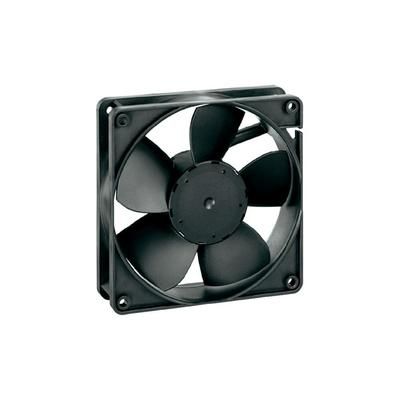

Axial fan delivering 98 CFM airflow, featuring a Sintec bearing for reliable operation. This 12V DC component operates within a temperature range of -4°C to 158°C and boasts a maximum power dissipation of 4W. Constructed with a black PVC housing, it measures 119mm in length, 119mm in depth, and 32mm in height, with a noise level of 43 dBA at 3000 RPM. Mounting is facilitated via flanges, and termination is via 2 wire leads.
FrequencyN/R
PackageAxial
Voltage Rating12V
MountingFlanges
Quick Jump:
Technical Specifications
Ebm-Papst 4312NGN technical specifications.
General
| Airflow | 98CFM |
| Bearing Type | Sintec |
| Package/Case | Axial |
| Color | Black |
| Depth | 119mm |
| Height | 32mm |
| Lead Free | Lead Free |
| Length | 119mm |
| Material | PVC |
| Max Operating Temperature | 158°C |
| Min Operating Temperature | -4°C |
| Max Power Dissipation | 4W |
| Mount | Flanges |
| Noise | 43dBA |
| Noise Level | 43 dB |
| Operating Frequency | N/R |
| Packaging | Bulk |
| Radiation Hardening | No |
| RPM | 3000RPM |
| Series | 4300N |
| Termination | 2 Wire Leads |
| Voltage Rating | 12V |
| DC Rated Voltage | 12V |
| Weight | 0.507lb |
| Width | 32mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst 4312NGN Datasheet
Download the complete datasheet for Ebm-Papst 4312NGN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
