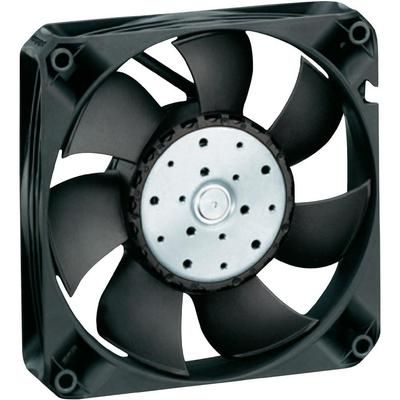

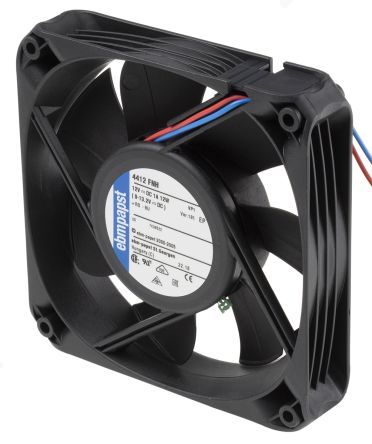

High-performance 119mm DC axial fan delivering 132.5 CFM airflow at 5400 RPM. Features durable ball bearings for extended lifespan and operates within a temperature range of -4°C to 70°C. This 12V fan has a maximum power consumption of 12W and a noise level of 55 dBA. Constructed with PVC and plastic materials, it mounts via flanges and terminates with lead wires.
FrequencyNot RequiredHz
PackageAxial
Storage119mm
Voltage Rating12V
Quick Jump:
Technical Specifications
Ebm-Papst 4412FNH technical specifications.
General
Airflow
132.5CFM
Bearing Type
Ball
Package/Case
Axial
Depth
119mm
Height
25mm
Lead Length
310mm
Length
119mm
Material
PVC, Plastic
Max Operating Temperature
70°C
Min Operating Temperature
-4°C
Max Power Dissipation
12W
Mount
Flanges
Noise
55dBA
Noise Level
55
dBA
Operating Frequency
Not RequiredHz
Operating Supply Voltage
12V
Packaging
Bulk
Power Consumption
12W
Radiation Hardening
No
Reach SVHC Compliant
No
RPM
5400RPM
Series
4400FN
Size
119mm
Speed
5400RPM
Termination
Lead Wire
Voltage Rating
12V
Weight
0.529lb
Width
119mm
Compliance
RoHS
Compliant
Datasheet
Ebm-Papst 4412FNH Datasheet
Download the complete datasheet for Ebm-Papst 4412FNH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
