Axial DC fan with ball bearing, delivering 100.1 CFM airflow at 2900 RPM. Features a 24V operating voltage, 5W power consumption, and a noise level of 43 dBA. Constructed from plastic with tin contact plating, this fan operates between -4°C and 140°C and measures 119 x 119 x 25mm. Approvals include UL, CSA, VDE, and CE.
FrequencyNot RequiredHz
PackageAxial
Storage119mm
Voltage Rating24V
Quick Jump:
Technical Specifications
Ebm-Papst 4414F technical specifications.
General
| Airflow | 100.1CFM |
| Approvals | UL, CSA, VDE, CE |
| Bearing Type | Ball |
| Package/Case | Axial |
| Color | Black |
| Contact Plating | Tin |
| Depth | 119mm |
| Height | 25mm |
| Lead Free | Lead Free |
| Lead Length | 310mm |
| Length | 119mm |
| Material | Plastic |
| Max Operating Temperature | 140°C |
| Min Operating Temperature | -4°C |
| Max Power Dissipation | 5W |
| Mount | Flanges |
| Noise | 43dBA |
| Noise (dB) | 43dB |
| Noise Level | 43 dBA |
| Operating Frequency | Not RequiredHz |
| Operating Supply Voltage | 24V |
| Package Quantity | 25 |
| Power Consumption | 5W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 2900RPM |
| Series | 4400F |
| Size | 119mm |
| Speed | 2900RPM |
| Termination | Leads |
| Voltage Rating | 24V |
| Weight | 0.38lb |
| Width | 119mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst 4414F Datasheet
Download the complete datasheet for Ebm-Papst 4414F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

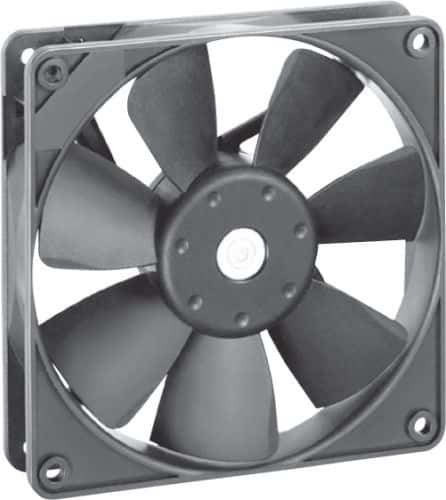

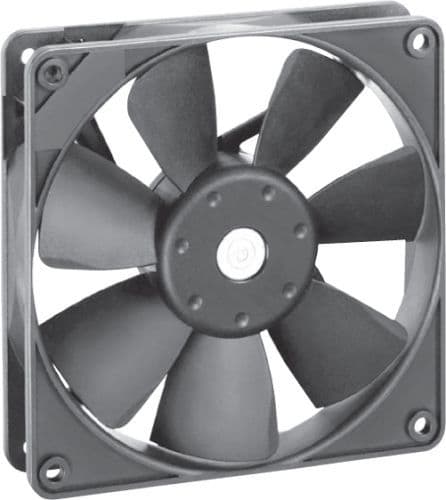

Product Images
