Compact axial fan, 119mm x 119mm x 38mm, delivering 94.1 CFM airflow at 2650 RPM. Features sleeve bearing, metal construction, and 230 VAC, 50 Hz operation. Rated IP54 for water and dust resistance, with a maximum operating temperature of 122°C and a noise level of 40 dBA. Power consumption is 19W.
Frequency50Hz
PackageAxial
Voltage Rating230V
Power19W
Quick Jump:
Technical Specifications
Ebm-Papst 4650Z-876 technical specifications.
General
| Airflow | 94.1CFM |
| Bearing Type | Sleeve |
| Package/Case | Axial |
| Depth | 119mm |
| Frequency | 50Hz |
| Height | 119mm |
| Length | 119mm |
| Material | Metal |
| Max Operating Temperature | 122°C |
| Min Operating Temperature | 14°C |
| Max Power Dissipation | 19W |
| Noise | 40dBA |
| Noise Level | 40 dBA |
| Operating Frequency | 50 Hz |
| Operating Supply Voltage | 230V |
| Packaging | Bulk |
| Power Consumption | 19W |
| Radiation Hardening | No |
| Ratings | IP54, Water Resistant, Dust Tight |
| Reach SVHC Compliant | No |
| RPM | 2650RPM |
| Series | 4000Z |
| Speed | 1900RPM |
| Termination | Terminals |
| Voltage Rating | 230V |
| Weight | 540g |
| Width | 38mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst 4650Z-876 Datasheet
Download the complete datasheet for Ebm-Papst 4650Z-876 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

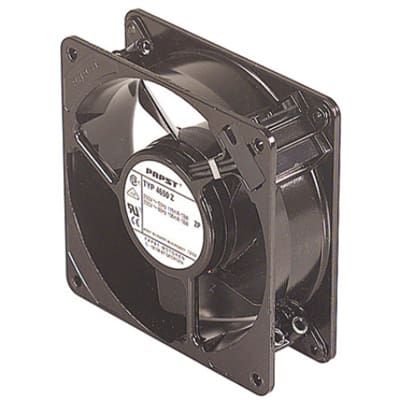

Product Images
