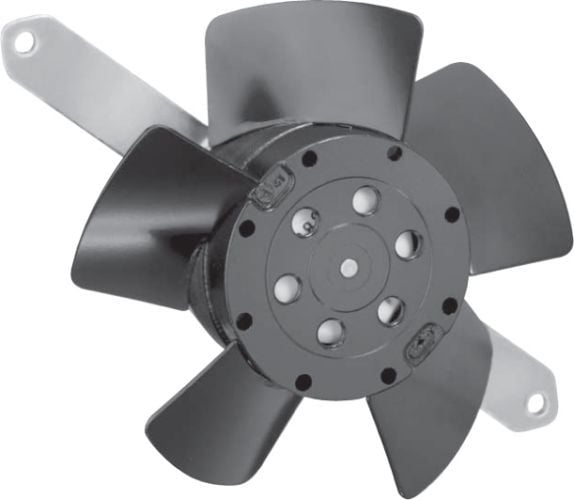

Axial AC fan with ball bearing, delivering 73.6 CFM airflow at 2600 RPM. Features a 230V voltage rating and operates at 50 Hz. Measuring 108mm in diameter and 37mm in height, this fan offers a noise level of 42 dB and a maximum operating temperature of 149°C. Mounting is via flanges, with lead termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ebm-Papst 4656TZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Airflow | 73.6CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Depth | 108mm |
| Diameter | 108mm |
| Height | 37mm |
| Lead Free | Lead Free |
| Length | 148.2mm |
| Max Operating Temperature | 149°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 19W |
| Mount | Flanges |
| Noise | 42dBA |
| Noise (dB) | 42dB |
| Noise Level | 42 dB |
| Operating Frequency | 50 Hz |
| Package Quantity | 25 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 2600RPM |
| Series | 4600TZ |
| Size | 108mm |
| Speed | 2600RPM |
| Termination | Leads |
| Voltage Rating | 230V |
| Weight | 0.956lb |
| Width | 37mm |
| RoHS | Compliant |
