115VAC axial fan, 119x38mm, delivers 61.8CFM airflow at 1800RPM. Features ball bearing for durability and metal construction. Operates from -40°C to 158°C with 12W power consumption. Rated IP54 for water and dust resistance, with UL, CSA, and VDE approvals. Mounts via flanges and terminates with leads.
Frequency60 Hz
PackageAxial
Voltage Rating115V
MountingFlanges
Quick Jump:
Technical Specifications
Ebm-Papst 4806Z technical specifications.
General
| Airflow | 61.8CFM |
| Approvals | UL, CSA, VDE |
| Bearing Type | Ball |
| Package/Case | Axial |
| Depth | 38mm |
| Height | 38mm |
| Length | 119mm |
| Material | Metal |
| Max Operating Temperature | 158°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 12W |
| Mount | Flanges |
| Noise | 28dBA |
| Noise Level | 28dBA |
| Operating Frequency | 60 Hz |
| Operating Supply Voltage | 115V |
| Power Consumption | 12W |
| Ratings | IP54, Water Resistant, Dust Tight |
| RPM | 1800RPM |
| Series | 4000Z |
| Termination | Leads |
| Voltage Rating | 115V |
| Weight | 1.19lb |
| Width | 119mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst 4806Z Datasheet
Download the complete datasheet for Ebm-Papst 4806Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

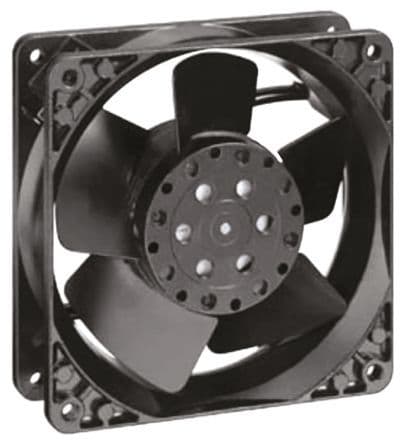

Product Images
