Axial DC fan, 24V, 9.5W, delivering 147 CFM airflow. Features ball bearing construction for durability and operates within a -13°C to 72°C temperature range. With a 2900 RPM speed and 48 dBA noise level, this metal fan offers 12V to 30V input voltage capability. Mounting is facilitated by flanges, and termination is via leads.
FrequencyNot RequiredHz
PackageAxial
Storage135mm
Voltage Rating24V
Quick Jump:
Technical Specifications
Ebm-Papst 5114N technical specifications.
General
| Airflow | 147CFM |
| Approvals | CE |
| Bearing Type | Ball |
| Package/Case | Axial |
| Current Rating | 460mA |
| Depth | 135mm |
| Height | 38mm |
| Lead Free | Lead Free |
| Length | 135mm |
| Material | Metal |
| Max Input Voltage | 30V |
| Min Input Voltage | 12V |
| Max Operating Temperature | 72°C |
| Min Operating Temperature | -13°C |
| Max Power Dissipation | 9W |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 12V |
| Mount | Flanges |
| Noise | 48dBA |
| Noise Level | 48 dBA |
| Operating Frequency | Not RequiredHz |
| Operating Supply Voltage | 24V |
| Package Quantity | 25 |
| Packaging | Bulk |
| Power Consumption | 9.5W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 2900RPM |
| Series | 5100N |
| Size | 135mm |
| Speed | 2900RPM |
| Termination | Leads |
| Voltage Rating | 24V |
| Weight | 1.4lb |
| Width | 135mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst 5114N Datasheet
Download the complete datasheet for Ebm-Papst 5114N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

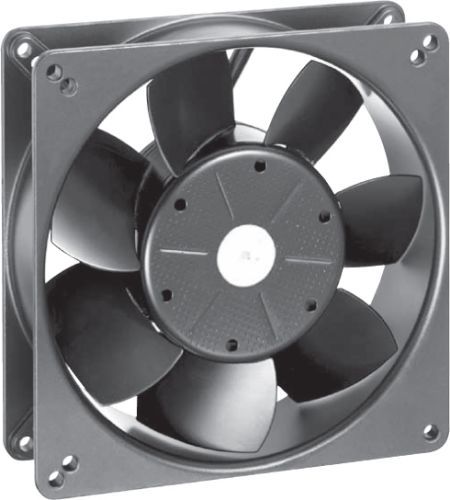

Product Images
