Compact axial fan featuring a 60mm frame and 25.4mm depth, delivering 27.1 CFM airflow at 5600 RPM. Operates on 24 VDC with a power consumption of 2.1W. Equipped with durable ball bearings and 2-wire lead termination. Rated IP68 for waterproof and dust-tight performance, with an operating temperature range of -4°C to 158°C.
Frequency5600RPM
PackageAxial
Power2.1W
Quick Jump:
Technical Specifications
Ebm-Papst 614NHU technical specifications.
General
| Airflow | 27.1CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Depth | 25.4mm |
| Height | 60mm |
| Length | 60mm |
| Material | Plastic |
| Max Operating Temperature | 158°C |
| Min Operating Temperature | -4°C |
| Max Power Dissipation | 2.1W |
| Noise | 37dBA |
| Noise (dB) | 41dB |
| Noise Level | 37 dBA |
| Operating Supply Voltage | 24V |
| Package Quantity | 25 |
| Power Consumption | 2.1W |
| Ratings | IP68, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RPM | 5600RPM |
| Series | 600NU |
| Speed | 5600RPM |
| Termination | 2 Wire Leads |
| Weight | 0.146lb |
| Width | 25.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst 614NHU Datasheet
Download the complete datasheet for Ebm-Papst 614NHU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

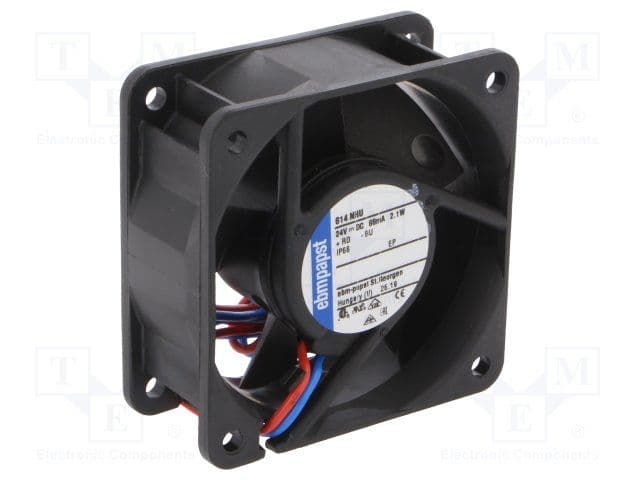

Product Images
