Axial fan, 60mm x 25mm, delivering 24.7 CFM airflow at 5100 RPM. Features durable ball bearings and operates on a 24VDC supply. Constructed from plastic, this fan has a maximum operating temperature of 70°C and a power consumption of 1.8W. Mountable via flanges, it offers a noise level of 35 dBA.
FrequencyNot RequiredHz
PackageAxial
Storage80mm
Voltage Rating24V
Quick Jump:
Technical Specifications
Ebm-Papst 614NN technical specifications.
General
| Airflow | 24.7CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Depth | 60mm |
| Height | 25mm |
| Lead Free | Lead Free |
| Length | 60mm |
| Material | Plastic |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -4°C |
| Max Power Dissipation | 1.8W |
| Mount | Flanges |
| Noise | 35dBA |
| Noise Level | 35 dBA |
| Operating Frequency | Not RequiredHz |
| Operating Supply Voltage | 24V |
| Packaging | Bulk |
| Power Consumption | 1.8W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 5100RPM |
| Series | 600N |
| Size | 80mm |
| Speed | 5100RPM |
| Termination | Leads |
| Voltage Rating | 24V |
| Weight | 0.145lb |
| Width | 60mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst 614NN Datasheet
Download the complete datasheet for Ebm-Papst 614NN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

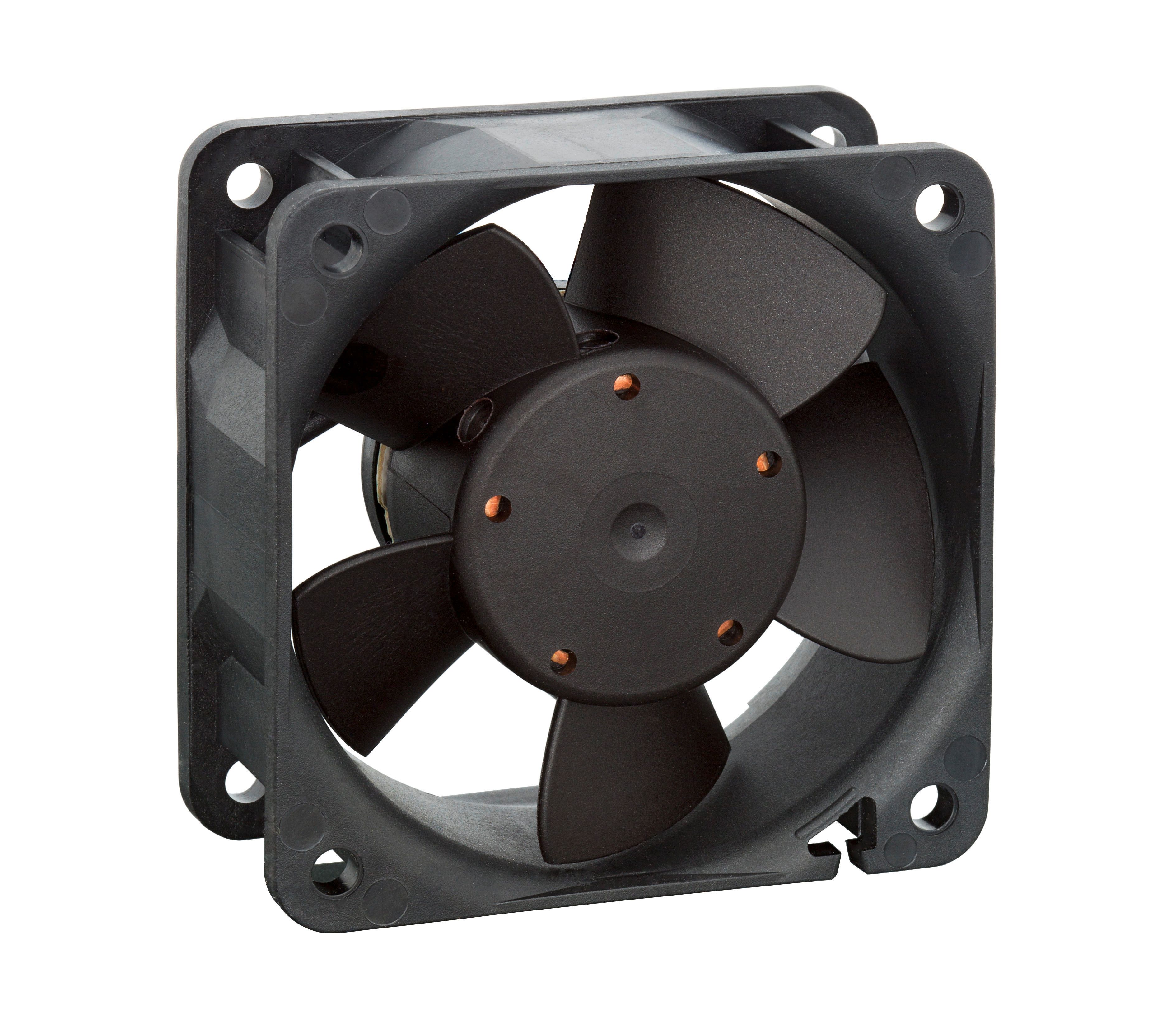

Product Images
