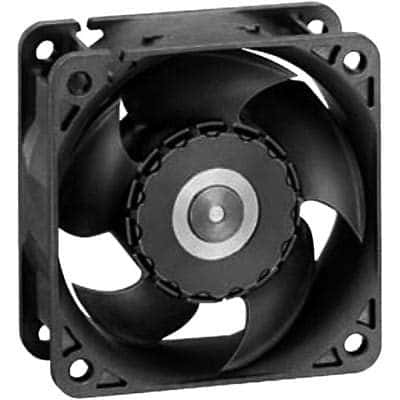

12VDC axial fan, 60mm square tubeaxial design with 25mm depth. Features ball bearings for durability and operates at 6100 RPM, delivering 23.5 CFM airflow. Constructed from black plastic, this fan offers a noise level of 35 dBA and a maximum operating temperature of 70°C. Power consumption is 1.9W, with wire lead termination and flange mounting options.
FrequencyNot RequiredHz
Storage60mm
Voltage Rating12V
MountingFlanges
Quick Jump:
Technical Specifications
Ebm-Papst 622N technical specifications.
General
Airflow
23.5CFM
Bearing Type
Ball
Color
Black
Depth
60mm
Height
25mm
Lead Free
Lead Free
Length
60mm
Material
Plastic
Max Operating Temperature
70°C
Min Operating Temperature
-4°C
Max Power Dissipation
1.9W
Mount
Flanges
Noise
35dBA
Noise Level
36
dBA
Operating Frequency
Not RequiredHz
Operating Supply Voltage
12V
Package Quantity
1
Packaging
Bulk
Power Consumption
1.9W
Radiation Hardening
No
Reach SVHC Compliant
No
RPM
6100RPM
Series
620
Size
60mm
Termination
Leads
Voltage Rating
12V
Weight
0.187lb
Width
60mm
Compliance
RoHS
Compliant
Datasheet
Ebm-Papst 622N Datasheet
Download the complete datasheet for Ebm-Papst 622N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
