Compact axial fan, 70mm size, delivering 16.5 CFM airflow at 3300 RPM. Features sleeve bearings and operates at 12 VDC with a maximum power consumption of 600mW. Constructed from plastic, this fan offers a 70mm depth, height, and length, with mounting via flanges. It operates within a temperature range of -4°C to 158°C and produces a noise level of 25 dBA.
FrequencyN/R
PackageAxial
Storage70mm
Voltage Rating12V
Quick Jump:
Technical Specifications
Ebm-Papst 712F/2L-005 technical specifications.
General
| Airflow | 16.5CFM |
| Bearing Type | Sleeve |
| Package/Case | Axial |
| Depth | 70mm |
| Height | 70mm |
| Length | 70mm |
| Material | Plastic |
| Max Operating Temperature | 158°C |
| Min Operating Temperature | -4°C |
| Max Power Dissipation | 600mW |
| Mount | Flanges |
| Noise | 25dBA |
| Noise Level | 25 dB |
| Operating Frequency | N/R |
| Operating Supply Voltage | 12V |
| Packaging | Bulk |
| Power Consumption | 600mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 3300RPM |
| Series | 700F |
| Size | 70mm |
| Speed | 3300RPM |
| Termination | Lead Wire |
| Voltage Rating | 12V |
| Width | 15mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst 712F/2L-005 Datasheet
Download the complete datasheet for Ebm-Papst 712F/2L-005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

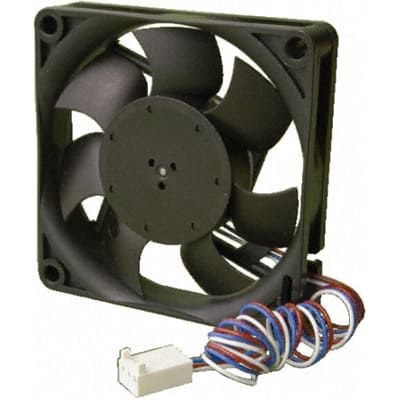

Product Images
