High-performance 80mm axial DC fan delivering 131 CFM airflow at 14000 RPM. Features durable ball bearings, tin contact plating, and a robust PVC housing. Operates reliably within a temperature range of -4°C to 70°C, with a maximum power dissipation of 39W. This fan is designed for flange mounting and utilizes lead termination for easy integration.
FrequencyNot RequiredHz
PackageAxial
Storage80mm
Voltage Rating12V
Quick Jump:
Technical Specifications
Ebm-Papst 8212JH4 technical specifications.
General
| Airflow | 131CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Color | Black |
| Contact Plating | Tin |
| Depth | 80mm |
| Height | 38mm |
| Length | 80mm |
| Material | PVC |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -4°C |
| Max Power Dissipation | 39W |
| Mount | Flanges |
| Noise | 71dBA |
| Noise Level | 71 dB |
| Operating Frequency | Not RequiredHz |
| Packaging | Bulk |
| Radiation Hardening | No |
| RPM | 14000RPM |
| Series | 8200J |
| Size | 80mm |
| Speed | 14000RPM |
| Termination | Leads |
| Voltage Rating | 12V |
| Weight | 0.44lb |
| Width | 80mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst 8212JH4 Datasheet
Download the complete datasheet for Ebm-Papst 8212JH4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

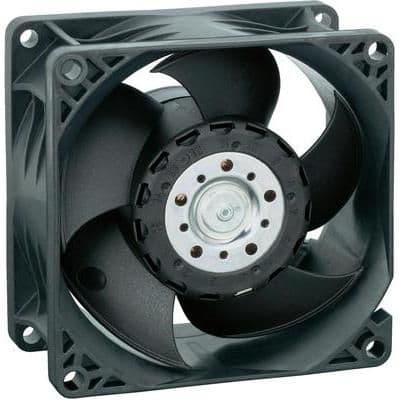

Product Images
