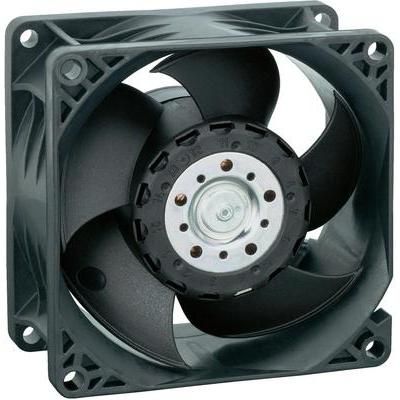

High-performance DC axial fan delivering 131 CFM airflow. Features durable ball bearings for reliable operation and a robust plastic and PVC construction. Operates at 14000 RPM with a 24V supply voltage, consuming 38W of power. Designed for thermal management applications, this fan has a compact 80mm size and operates within a temperature range of -4°C to 70°C. Mountable via flanges, it terminates with leads for easy integration.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ebm-Papst 8214JH4 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Ebm-Papst 8214JH4 technical specifications.
| Airflow | 131CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Color | Black |
| Depth | 80mm |
| Height | 38mm |
| Length | 80mm |
| Material | PVC, Plastic |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -4°C |
| Max Power Dissipation | 37W |
| Mount | Flanges |
| Noise | 71dBA |
| Noise Level | 71dBA |
| Operating Frequency | Not RequiredHz |
| Operating Supply Voltage | 24V |
| Package Quantity | 25 |
| Packaging | Bulk |
| Power Consumption | 38W |
| RPM | 14000RPM |
| Series | 8200J |
| Size | 80mm |
| Speed | 14000RPM |
| Termination | Leads |
| Voltage Rating | 24V |
| Weight | 0.441lb |
| Width | 80mm |
| RoHS | Compliant |
