High-performance 80mm axial DC fan delivering 78 CFM airflow at 8400 RPM. Features durable ball bearings for reliable operation, a plastic housing, and tin-plated contacts. Operates within a temperature range of -4°C to 158°C with a maximum power consumption of 10W. Equipped with 2-wire leads and flange mounting for versatile integration.
FrequencyN/R
PackageAxial
Storage80mm
Voltage Rating24V
Quick Jump:
Technical Specifications
Ebm-Papst 8214JN technical specifications.
General
| Airflow | 78CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Color | Black |
| Contact Plating | Tin |
| Depth | 80mm |
| Height | 38mm |
| Lead Free | Lead Free |
| Lead Length | 310mm |
| Length | 80mm |
| Material | Plastic |
| Max Operating Temperature | 158°C |
| Min Operating Temperature | -4°C |
| Max Power Dissipation | 10W |
| Mount | Flanges |
| Noise | 55dBA |
| Noise Level | 55 dB |
| Operating Frequency | N/R |
| Operating Supply Voltage | 24V |
| Package Quantity | 25 |
| Power Consumption | 10W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 8400RPM |
| Series | 8200J |
| Size | 80mm |
| Speed | 8400RPM |
| Termination | 2 Wire Leads |
| Voltage Rating | 24V |
| Weight | 0.353lb |
| Width | 80mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst 8214JN Datasheet
Download the complete datasheet for Ebm-Papst 8214JN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

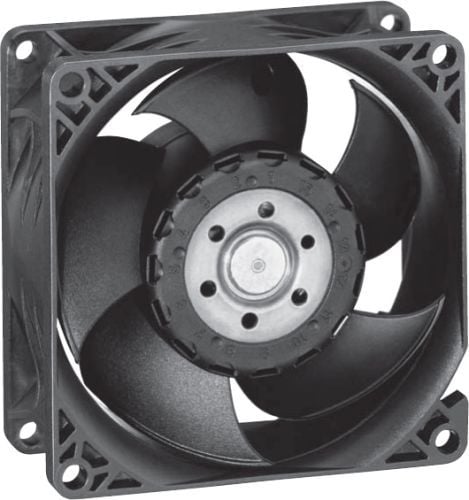

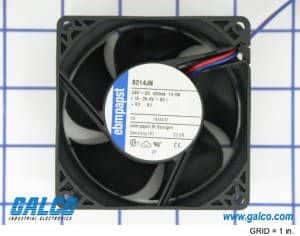

Product Images
