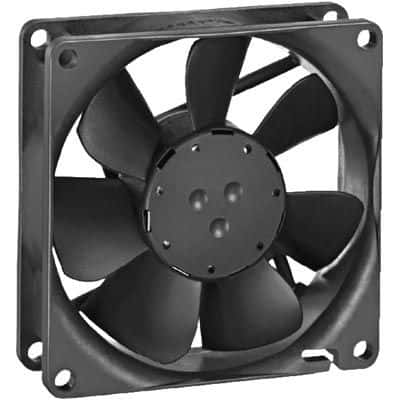

Axial DC fan with Sintec bearing, operating at 12V DC with a voltage range of 8V to 15V. Delivers 34.1 CFM airflow at 26 dBA noise level. Features an 80mm x 80mm x 25.4mm frame size and plastic construction. Approvals include UL, CSA, VDE, and CE. Mountable via flanges with lead termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ebm-Papst 8412NGM datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Airflow | 34.1CFM |
| Approvals | UL, CSA, VDE, CE |
| Bearing Type | Sleeve |
| Package/Case | Axial |
| Depth | 80mm |
| Height | 80mm |
| Lead Free | Lead Free |
| Lead Length | 310mm |
| Length | 80mm |
| Material | Plastic |
| Max Input Voltage | 15V |
| Min Input Voltage | 8V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Power Dissipation | 1.3W |
| Max Supply Voltage (DC) | 15V |
| Min Supply Voltage (DC) | 8V |
| Mount | Flanges |
| Noise | 26dBA |
| Noise Level | 26 dB |
| Operating Frequency | Not RequiredHz |
| Operating Supply Voltage | 12V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 1.3W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | 8400N |
| Size | 80mm |
| Speed | 2600RPM |
| Termination | Leads |
| Thickness | 25mm |
| Voltage Rating | 12V |
| DC Rated Voltage | 12V |
| Weight | 0.31lb |
| Width | 25.4mm |
| RoHS | Compliant |
