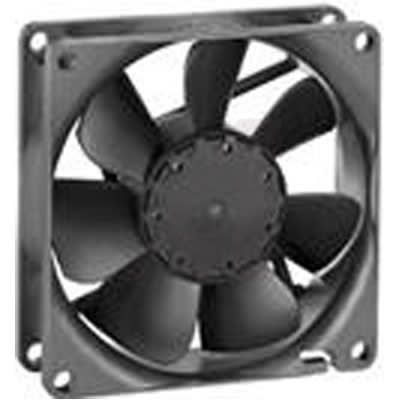

Axial DC fan, 90mm diameter, 25mm height, delivering 34.1 CFM airflow at 2600 RPM. Features sleeve bearing, plastic construction, and tin contact plating. Operates at 12V with 1.4W power consumption, suitable for temperatures from -4°C to 167°C. Approvals include UL, CSA, VDE, and CE.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ebm-Papst 8412NGME datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Airflow | 34.1CFM |
| Approvals | UL, CSA, VDE, CE |
| Bearing Type | Sleeve |
| Package/Case | Axial |
| Contact Plating | Tin |
| Depth | 80mm |
| Diameter | 90mm |
| Height | 25mm |
| Lead Length | 310mm |
| Length | 80mm |
| Material | Plastic |
| Max Operating Temperature | 167°C |
| Min Operating Temperature | -4°C |
| Max Power Dissipation | 1.4W |
| Mount | Flanges |
| Noise | 26dBA |
| Noise (dB) | 26dB |
| Noise Level | 26 dB |
| Operating Frequency | Not Required |
| Operating Supply Voltage | 12V |
| Packaging | Bulk |
| Power Consumption | 1.4W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 2600RPM |
| Series | 8400N |
| Size | 80mm |
| Speed | 2600RPM |
| Termination | Lead Wire |
| Voltage Rating | 12V |
| DC Rated Voltage | 24V |
| Weight | 0.209lb |
| Width | 80mm |
| RoHS | Compliant |
