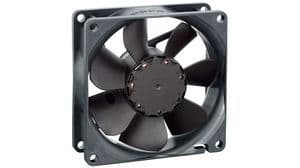

Axial DC fan, 80mm size, featuring ball bearings for reliable operation. Delivers 19.4 CFM airflow at 1500 RPM, with a 24V operating supply voltage and 700mW power consumption. Constructed from plastic, this fan operates within a temperature range of -4°C to 158°C and produces a noise level of 17 dBA. Mountable via flanges, it utilizes 2-wire leads for termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ebm-Papst 8414NL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Airflow | 19.4CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Depth | 80mm |
| Height | 25mm |
| Lead Free | Lead Free |
| Length | 80mm |
| Material | Plastic |
| Max Operating Temperature | 158°C |
| Min Operating Temperature | -4°C |
| Max Power Dissipation | 700mW |
| Mount | Flanges |
| Noise | 17dBA |
| Noise Level | 17 dB |
| Operating Frequency | N/R |
| Operating Supply Voltage | 24V |
| Packaging | Bulk |
| Power Consumption | 700mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 1500RPM |
| Series | 8400N |
| Size | 80mm |
| Speed | 1500RPM |
| Termination | 2 Wire Leads |
| Voltage Rating | 24V |
| Weight | 0.209lb |
| Width | 80mm |
| RoHS | Compliant |
