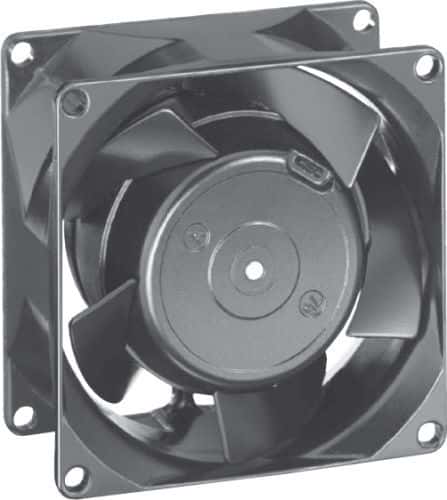

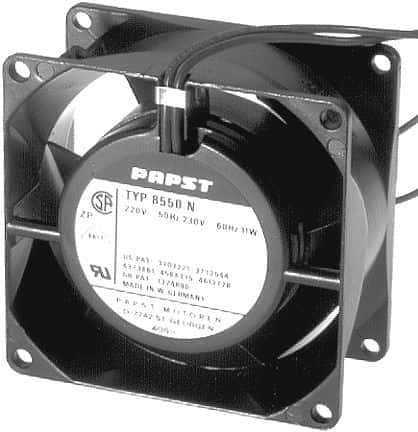

Axial fan, 80mm size, delivering 35.9 CFM airflow at 3200 RPM. Features a sleeve bearing and operates at 115VAC, 60Hz with 11W power consumption. Constructed with a metal housing, this fan has a depth and length of 79.5mm and a height/thickness of 38mm. It operates within a temperature range of 14°C to 75°C and produces a noise level of 34 dBA. Mounting is via flanges, and termination is by leads.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ebm-Papst 8500N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Ebm-Papst 8500N technical specifications.
| Airflow | 35.9CFM |
| Bearing Type | Sleeve |
| Package/Case | Axial |
| Depth | 79.5mm |
| Frequency | 60Hz |
| Height | 38mm |
| Length | 79.5mm |
| Material | Metal |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 14°C |
| Max Power Dissipation | 11W |
| Mount | Flanges |
| Noise | 34dBA |
| Noise (dB) | 34dB |
| Noise Level | 34 dB |
| Operating Frequency | 60 Hz |
| Operating Supply Voltage | 115V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 11W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 3200RPM |
| Series | 8000N |
| Size | 80mm |
| Speed | 3200RPM |
| Termination | Leads |
| Thickness | 38mm |
| Voltage Rating | 115V |
| Voltage Rating (AC) | 115V |
| Weight | 1.08lb |
| Width | 80mm |
| RoHS | Compliant |
