Axial AC fan with sleeve bearing, delivering 27.7 CFM airflow at 2500 RPM. Features a 115V operating supply voltage and 60 Hz operating frequency, with a noise level of 28 dBA. Constructed with a metal housing, this fan measures 79.5mm in length and width, with a 38mm depth, and supports flange mounting. Operates within a temperature range of 14°C to 70°C, consuming 11W of power.
Frequency60 Hz
PackageAxial
Storage80mm
Voltage Rating115V
Quick Jump:
Technical Specifications
Ebm-Papst 8800N technical specifications.
General
| Airflow | 27.7CFM |
| Bearing Type | Sleeve |
| Package/Case | Axial |
| Depth | 79.5mm |
| Height | 38mm |
| Lead Free | Contains Lead |
| Length | 79.5mm |
| Material | Metal |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 14°C |
| Max Power Dissipation | 11W |
| Mount | Flanges |
| Noise | 28dBA |
| Noise (dB) | 28dB |
| Noise Level | 28 dB |
| Operating Frequency | 60 Hz |
| Operating Supply Voltage | 115V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 11W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 2500RPM |
| Series | 8000N |
| Size | 80mm |
| Speed | 2500RPM |
| Termination | Leads |
| Thickness | 38mm |
| Voltage Rating | 115V |
| Weight | 1.1lb |
| Width | 80mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst 8800N Datasheet
Download the complete datasheet for Ebm-Papst 8800N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

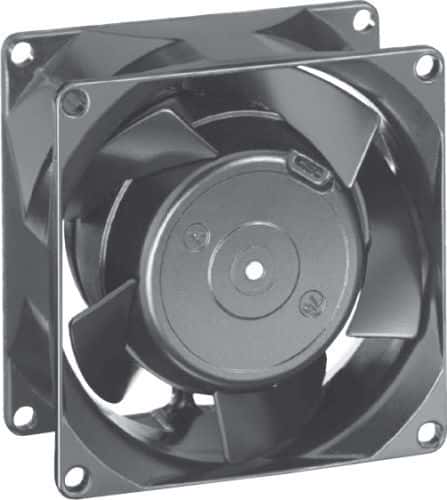

Product Images
