12V DC axial fan with 161.9 CFM airflow and 6000 RPM speed. Features ball bearing for durability, operating between -4°C and 149°C. This 119mm fan has a 38mm depth, 21W power consumption, and 60 dBA noise level. Includes 310mm 2-wire leads and flange mounting.
FrequencyN/R
PackageAxial
Storage119mm
Voltage Rating12V
Quick Jump:
Technical Specifications
Ebm-Papst DV4112N technical specifications.
General
| Airflow | 161.9CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Depth | 119mm |
| Height | 38mm |
| Lead Free | Lead Free |
| Lead Length | 310mm |
| Length | 119mm |
| Material | Plastic |
| Max Operating Temperature | 149°C |
| Min Operating Temperature | -4°C |
| Max Power Dissipation | 21W |
| Max Supply Voltage (DC) | 15V |
| Min Supply Voltage (DC) | 9V |
| Mount | Flanges |
| Noise | 60dBA |
| Noise Level | 61 dB |
| Operating Frequency | N/R |
| Operating Supply Voltage | 12V |
| Packaging | Bulk |
| Power Consumption | 21W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 6000RPM |
| Series | DV4100 |
| Size | 119mm |
| Speed | 6000RPM |
| Termination | 2 Wire Leads |
| Voltage Rating | 12V |
| Weight | 0.827lb |
| Width | 119mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst DV4112N Datasheet
Download the complete datasheet for Ebm-Papst DV4112N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

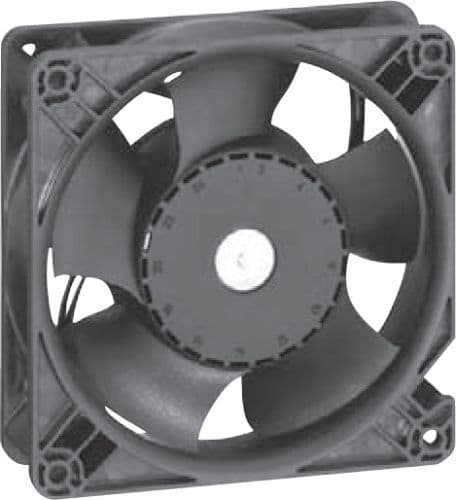

Product Images
