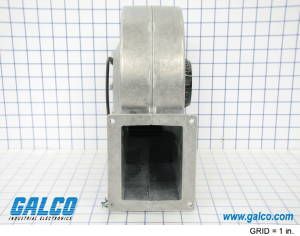

Centrifugal AC fan delivering 370.8 CFM airflow at 2150 RPM. Features ball bearings for durability and operates on 230V AC supply at 50/60 Hz. Constructed from aluminum with a depth of 125mm, height of 283mm, and length of 261mm, it mounts via flanges with 7mm diameter holes spaced 110mm apart. Rated IP44, it operates between -13°C and 86°C with a maximum power dissipation of 415W and a noise level of 73.71 dBA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ebm-Papst G2E180-EH03-01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Airflow | 370.8CFM |
| Bearing Type | Ball |
| Package/Case | 125 |
| Depth | 125mm |
| Height | 283mm |
| Length | 261mm |
| Material | Aluminium |
| Max Operating Temperature | 86°C |
| Min Operating Temperature | -13°C |
| Max Power Dissipation | 415W |
| Mount | Flanges |
| Mounting Hole Diameter | 7mm |
| Mounting Hole Spacing | 110mm |
| Noise | 73.71dBA |
| Noise Level | N/A |
| Operating Frequency | 50|60 Hz |
| Operating Supply Voltage | 230V |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP44 |
| RPM | 2150RPM |
| Series | G2E180 |
| Size | 261mm |
| Speed | 2150RPM |
| Termination | Wire Leads |
| Voltage Rating | 230V |
| Voltage Rating (AC) | 230V |
| Weight | 12lb |
| Width | 125mm |
| RoHS | Compliant |
