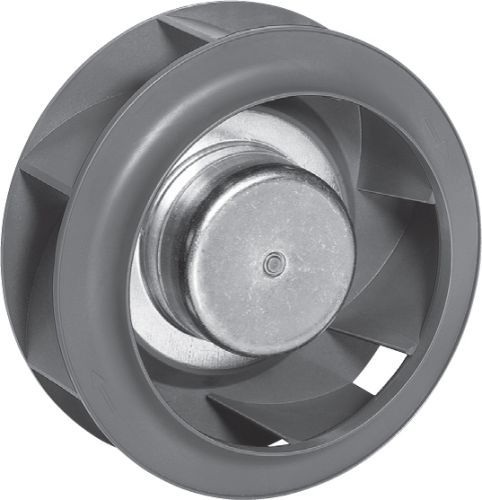

High-performance DC fan delivering 330 CFM airflow at 3100 RPM. Features durable ball bearings and operates on a 48V DC supply. Designed for demanding applications with a wide operating temperature range of -13°C to 140°C and a maximum power dissipation of 34W. Approvals include UL, CSA, and VDE, with lead-free construction. Mounting is facilitated by flanges, and termination is via wire leads.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ebm-Papst R1G175-AB41-02 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Airflow | 330CFM |
| Approvals | UL, CSA, VDE |
| Bearing Type | Ball |
| Current Rating | 800mA |
| Depth | 69mm |
| Diameter | 175mm |
| Height | 69mm |
| Lead Free | Lead Free |
| Length | 175mm |
| Max Operating Temperature | 140°C |
| Min Operating Temperature | -13°C |
| Max Power Dissipation | 34W |
| Mount | Flanges |
| Noise | 65dBA |
| Noise Level | N/A |
| Operating Frequency | N/R |
| Operating Supply Voltage | 48V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RPM | 3100RPM |
| Series | R1G175 |
| Size | 175mm |
| Speed | 3100RPM |
| Termination | Wire Leads |
| Voltage Rating | 48V |
| DC Rated Voltage | 48V |
| Weight | 1.54lb |
| Width | 69mm |
| RoHS | Compliant |
