Radial DC blower, 24V, 4W, delivering 33.6 CFM airflow. Features ball bearing for durability and flange mounting. Operates at 1800 RPM with a noise level of 47 dBA. Dimensions are 100mm diameter and 32mm depth. Approvals include UL, CSA, and VDE. Lead-free construction.
FrequencyN/R
Package100
Storage32mm
Voltage Rating24V
Quick Jump:
Technical Specifications
Ebm-Papst RER100-25/14 technical specifications.
General
| Airflow | 33.6CFM |
| Approvals | UL, CSA, VDE |
| Bearing Type | Ball |
| Package/Case | 100 |
| Depth | 32mm |
| Diameter | 100mm |
| Height | 32mm |
| Lead Free | Lead Free |
| Max Power Dissipation | 3.6W |
| Mount | Flanges |
| Noise | 47dBA |
| Noise Level | 47 dB |
| Operating Frequency | N/R |
| Operating Supply Voltage | 24V |
| Packaging | Bulk |
| Radiation Hardening | No |
| RPM | 1800RPM |
| Series | RER100DC |
| Size | 32mm |
| Speed | 1800RPM |
| Termination | Leads |
| Voltage Rating | 24V |
| Weight | 0.4lb |
| Width | 32mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst RER100-25/14 Datasheet
Download the complete datasheet for Ebm-Papst RER100-25/14 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

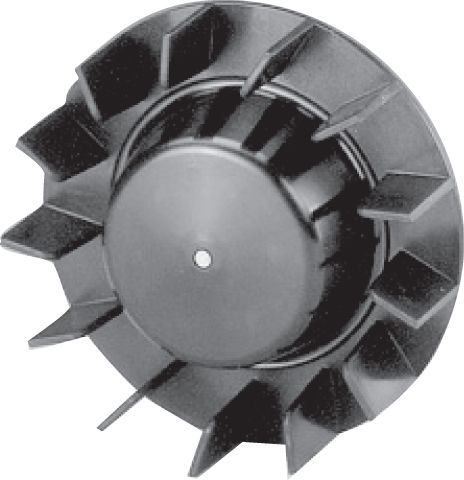

Product Images
