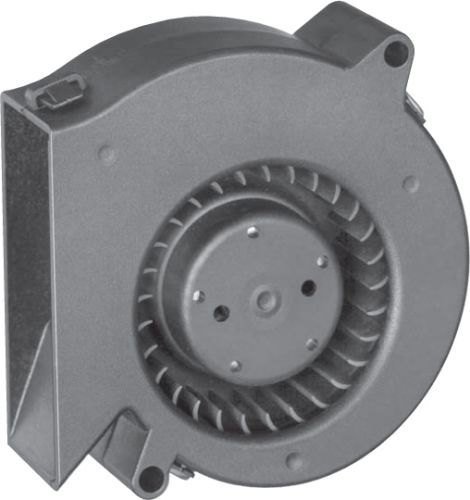

General purpose DC fan with 12V DC rated voltage and 5W maximum power dissipation. Features a 76mm x 76mm x 27mm radial package with ball bearing type and flange mounting. Delivers 16.5 CFM airflow at 4400 RPM, with a noise level of 51 dBA. Operates within a temperature range of -20°C to 70°C and includes UL, CSA, and VDE approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ebm-Papst RL48-19/12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Ebm-Papst RL48-19/12 technical specifications.
| Airflow | 16.5CFM |
| Approvals | UL, CSA, VDE |
| Bearing Type | Ball |
| Package/Case | Radial |
| Current Rating | 435mA |
| Depth | 76mm |
| Height | 27mm |
| Lead Free | Lead Free |
| Length | 76mm |
| Material | Plastic |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Power Dissipation | 5W |
| Mount | Flanges |
| Mounting Hole Spacing | 45.7mm |
| Noise | 51dBA |
| Noise Level | 51 dB |
| Operating Frequency | Not RequiredHz |
| Operating Supply Voltage | 13.8V |
| Package Quantity | 25 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 4400RPM |
| Series | RL48 |
| Size | 76mm |
| Speed | 4400RPM |
| Static Pressure | 0Pa |
| Termination | Leads |
| Voltage Rating | 12V |
| DC Rated Voltage | 12V |
| Weight | 0.165lb |
| Width | 27mm |
| RoHS | Compliant |
