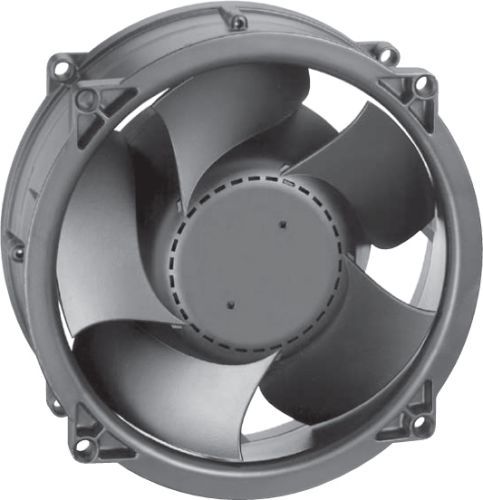

High-performance DC axial fan delivering 529.7 CFM airflow at 4550 RPM. Features durable ball bearings, a 220mm diameter, and operates on a 24V supply voltage. Designed for demanding applications with a wide operating temperature range of -13°C to 140°C and a maximum power dissipation of 93W. Mounts via flanges and utilizes lead wire termination for secure connections.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ebm-Papst W1G180-AB31-01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Airflow | 529.7CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Current Rating | 4.3A |
| Diameter | 220mm |
| Height | 200mm |
| Lead Free | Lead Free |
| Length | 200mm |
| Max Operating Temperature | 140°C |
| Min Operating Temperature | -13°C |
| Max Power Dissipation | 93W |
| Mount | Flanges |
| Noise | 68dBA |
| Noise (dB) | 68dB |
| Noise Level | N/A |
| Operating Frequency | N/R |
| Operating Supply Voltage | 24V |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 4550RPM |
| Series | W1G180 |
| Speed | 5180RPM |
| Termination | Lead Wire |
| Voltage Rating | 24V |
| DC Rated Voltage | 24V |
| Weight | 4lb |
| Width | 70mm |
| RoHS | Compliant |
Download the complete datasheet for Ebm-Papst W1G180-AB31-01 to view detailed technical specifications.
