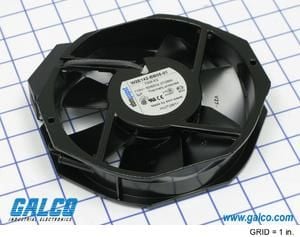

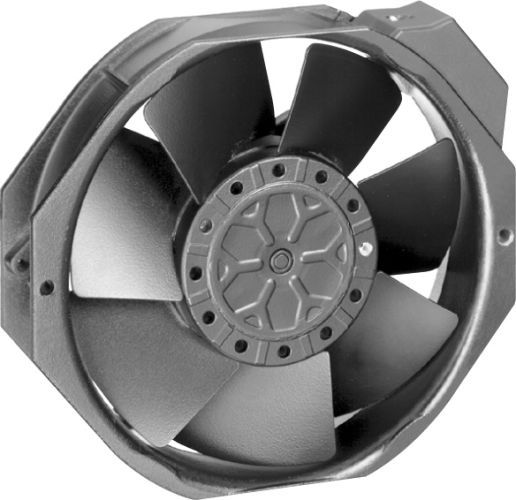

Axial AC fan delivering 230 CFM airflow, featuring ball bearings for durability. Operates at 115V AC, 50/60 Hz, with a maximum power consumption of 28W. Constructed with an aluminum housing, this fan has a 152mm diameter and a 172mm size, with a depth of 150mm and width of 38mm. It offers a wide operating temperature range from -40°C to 176°C and mounts via flanges.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ebm-Papst W2E142-BB05-01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Ebm-Papst W2E142-BB05-01 technical specifications.
| Airflow | 230CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Depth | 150mm |
| Diameter | 152mm |
| Frequency | 60Hz |
| Height | 150mm |
| Lead Free | Contains Lead |
| Length | 172mm |
| Material | Aluminium |
| Max Operating Temperature | 176°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 28W |
| Mount | Flanges |
| Noise | 57dBA |
| Noise (dB) | 57dB |
| Noise Level | 51,56 dB |
| Operating Frequency | 50|60 Hz |
| Operating Supply Voltage | 115V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 24W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 3350RPM |
| Series | W2E142 |
| Size | 172mm |
| Speed | 3350RPM |
| Termination | Terminals |
| Voltage Rating | 115V |
| Voltage Rating (AC) | 115V |
| Weight | 1.8lb |
| Width | 38mm |
| RoHS | Compliant |
