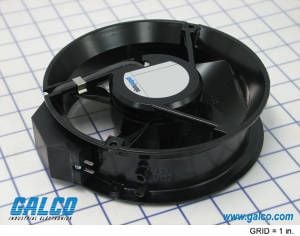

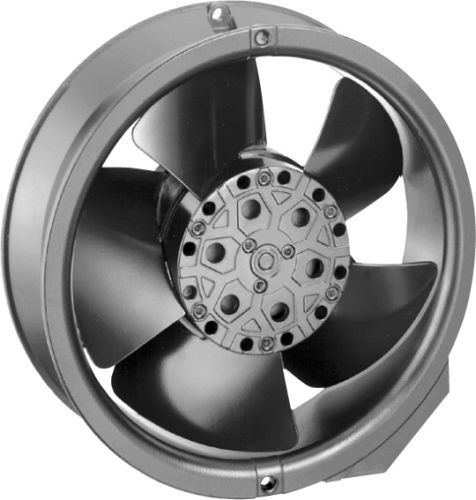

High-performance AC axial fan delivering 294.2 CFM airflow at 3300 RPM. Features durable ball bearings, an aluminum construction, and operates across a wide temperature range of -40°C to 176°C. This fan is designed for 115V AC operation at 50/60 Hz, with a power consumption of 29W and a noise level of 58 dBA. Its 172mm diameter and 51.1mm thickness, with flange mounting, ensure versatile integration.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ebm-Papst W2E143-AB15-01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Ebm-Papst W2E143-AB15-01 technical specifications.
| Airflow | 294.2CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Depth | 171.5mm |
| Diameter | 171.5mm |
| Frequency | 60Hz |
| Height | 172mm |
| Lead Free | Lead Free |
| Length | 171.5mm |
| Material | Aluminium |
| Max Operating Temperature | 176°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 29W |
| Mount | Flanges |
| Noise | 58dBA |
| Noise (dB) | 58dB |
| Noise Level | 54,58 dB |
| Operating Frequency | 50|60 Hz |
| Operating Supply Voltage | 115V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 29W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 3300RPM |
| Series | W2E143 |
| Size | 172mm |
| Speed | 3300RPM |
| Termination | Terminals |
| Thickness | 51.1mm |
| Voltage Rating | 115V |
| Voltage Rating (AC) | 115V |
| Weight | 2.1lb |
| Width | 51mm |
| RoHS | Compliant |
