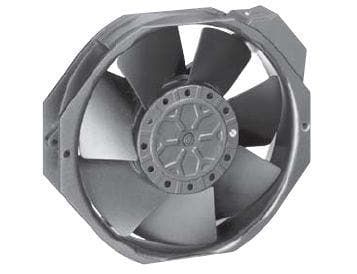

High-performance AC axial fan delivering 606 CFM airflow. Features durable aluminum construction, ball bearings for reliability, and a robust operating temperature range of -40°C to 65°C. Operates at 2800 RPM with 80W power consumption, suitable for 50/60 Hz frequencies and 115V supply. IP44 rated with terminal block termination and flange mounting for versatile integration.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ebm-Papst W2E200-HK86-01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Airflow | 606CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Depth | 260mm |
| Height | 225mm |
| Lead Free | Lead Free |
| Length | 225mm |
| Material | Aluminium |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 80W |
| Mount | Flanges |
| Noise | 61dBA |
| Noise Level | N/A |
| Operating Frequency | 50|60 Hz |
| Operating Supply Voltage | 115V |
| Packaging | Bulk |
| Power Consumption | 80W |
| Radiation Hardening | No |
| Ratings | IP44 |
| RPM | 2800RPM |
| Series | W2E200 |
| Speed | 2800RPM |
| Termination | Terminal Block |
| Voltage Rating | 115V |
| Weight | 4.4lb |
| Width | 80mm |
| RoHS | Compliant |
