Axial fan, 119mm size, delivering 140 CFM airflow at 4400 RPM. Features ball bearing for durability and operates on a 24VDC supply voltage, consuming 15W. Constructed with an aluminum material, this fan offers a wide operating temperature range from -13°C to 162°C and is rated IP22. Terminals facilitate connection, and mounting is achieved via flanges.
FrequencyNot RequiredHz
PackageAxial
Storage119mm
Voltage Rating24V
Quick Jump:
Technical Specifications
Ebm-Papst W2G110-AK43-31 technical specifications.
General
| Airflow | 140CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Depth | 119mm |
| Height | 119mm |
| Lead Free | Lead Free |
| Length | 119mm |
| Material | Aluminium |
| Max Operating Temperature | 162°C |
| Min Operating Temperature | -13°C |
| Max Power Dissipation | 15W |
| Mount | Flanges |
| Noise | 61dBA |
| Noise Level | 61 dB |
| Operating Frequency | Not RequiredHz |
| Operating Supply Voltage | 24V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 15W |
| Radiation Hardening | No |
| Ratings | IP22 |
| Reach SVHC Compliant | No |
| RPM | 4400RPM |
| Series | W2G110 |
| Size | 119mm |
| Termination | Terminals |
| Voltage Rating | 24V |
| Weight | 1.1lb |
| Width | 38mm |
Compliance
| RoHS | Compliant |
Datasheet
Ebm-Papst W2G110-AK43-31 Datasheet
Download the complete datasheet for Ebm-Papst W2G110-AK43-31 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

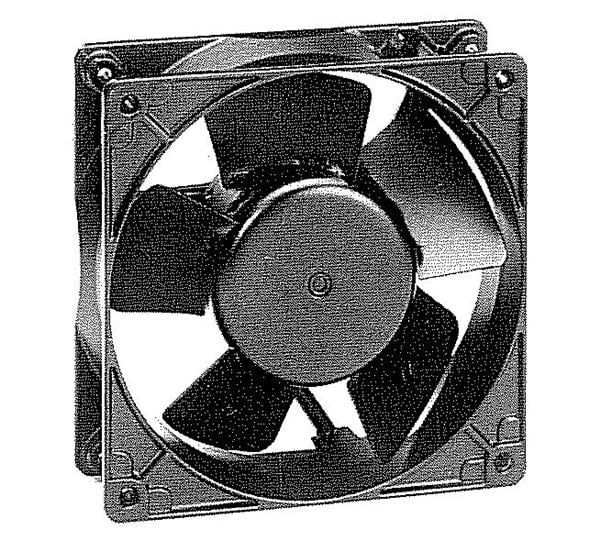

Product Images
