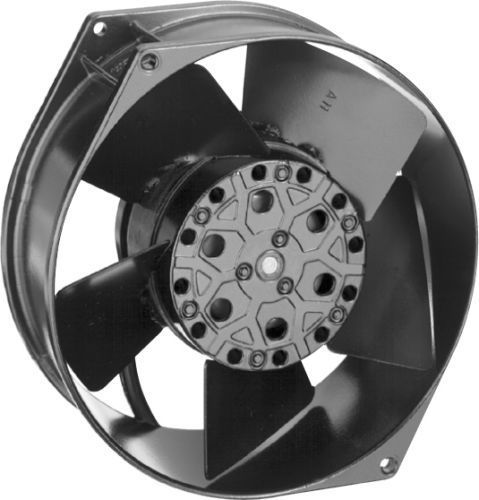

Axial AC fan delivering 223.6 CFM airflow at 3250 RPM. Features ball bearings for durability and operates on 115V supply across 50/60 Hz frequencies. Constructed with an aluminum housing, this fan has a 150mm diameter and 172mm height, with a 55mm width and 150mm depth. It operates within a temperature range of -13°C to 140°C, consuming 38W of power. Termination is via leads, and mounting is facilitated by flanges.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ebm-Papst W2S130-AA25-01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Airflow | 223.6CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Depth | 150mm |
| Diameter | 150mm |
| Height | 172mm |
| Lead Free | Contains Lead |
| Lead Length | 330mm |
| Length | 172mm |
| Material | Aluminium |
| Max Operating Temperature | 140°C |
| Min Operating Temperature | -13°C |
| Max Power Dissipation | 38W |
| Mount | Flanges |
| Noise | 53dBA |
| Noise (dB) | 53dB |
| Noise Level | 49,53 dB |
| Operating Frequency | 50|60 Hz |
| Operating Supply Voltage | 115V |
| Packaging | Bulk |
| Power Consumption | 38W |
| Radiation Hardening | No |
| Ratings | IP20 |
| Reach SVHC Compliant | No |
| RPM | 3250RPM |
| Series | W2S130 |
| Size | 150mm |
| Speed | 3250RPM |
| Termination | Leads |
| Voltage Rating | 115V |
| Weight | 2.5lb |
| Width | 55mm |
| RoHS | Compliant |
