12-position, 2-row card edge connector with a 3.96mm pitch and straight, panel mount orientation. Features a 5A current rating, operating temperature range of -40°C to 105°C, and UL94 V-0 flammability rating. Constructed with a polyester insulation material and copper alloy contacts with gold plating. Designed for 1.78mm card thickness and offers solder termination.
Current Rating5A
MountingPanel
Quick Jump:
Technical Specifications
Edac 305-012-500-202 technical specifications.
General
| Card Thickness | 1.78mm |
| Color | Green |
| Contact Material | Nickel, Tin, Gold, Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 5A |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 11.7mm |
| Housing Color | Green |
| Insulation Material | Polyester |
| Lead Free | Lead Free |
| Length | 31.6mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Panel |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Pitch | 3.96mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 3.56mm |
| Series | 305 |
| Termination | Solder |
| Width | 8.71mm |
Compliance
| RoHS | Compliant |
Datasheet
Edac 305-012-500-202 Datasheet
Download the complete datasheet for Edac 305-012-500-202 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

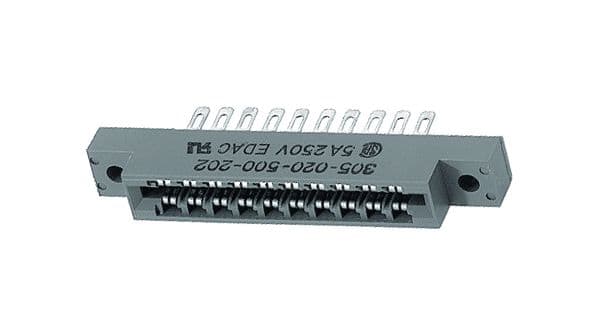

Product Images
