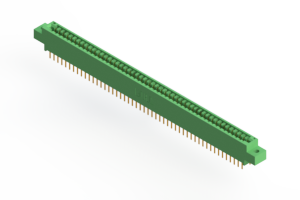

100-position, 2-row card edge connector with a 0.125-inch pitch, designed for 1.57mm (0.062-inch) thick boards. Features straight, through-hole mounting with solder termination. Contacts are gold-plated over nickel and tin for enhanced conductivity. The green polyester insulation material boasts a UL94 V-0 flammability rating and operates within a temperature range of -65°C to 125°C. Maximum current rating is 3A.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Edac 346-100-520-802 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Board Thickness | 1.57mm |
| Card Thickness | 0.062inch |
| Color | Green |
| Contact Material | Nickel, Tin |
| Contact Plating | Gold |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 15.2mm |
| Housing Color | Green |
| Insulation Material | Polyester |
| Lead Free | Lead Free |
| Length | 166mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Contacts | 100 |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Pitch | 0.125inch |
| RoHS Compliant | Yes |
| Series | 346 |
| Termination | Solder |
| Width | 9.4mm |
| RoHS | Compliant |
