Shielded, vertical RJ45 connector with 8 positions and 8 contacts. Features bronze contacts with gold plating, a 1.5A current rating, and a 1.25V voltage rating. Designed for through-hole mounting with solder termination, operating between -40°C and 80°C. This single-port modular connector is lead-free and user-selectable in direction.
Voltage Rating1.25V
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Edac A00-108-222-450 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Direction | User Selectable |
| Gender | Female |
| Lead Free | Lead Free |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 200 |
| Packaging | Tray |
| Reach SVHC Compliant | Unknown |
| Series | A00 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 1.25V |
Compliance
| RoHS | Compliant |
Datasheet
Edac A00-108-222-450 Datasheet
Download the complete datasheet for Edac A00-108-222-450 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

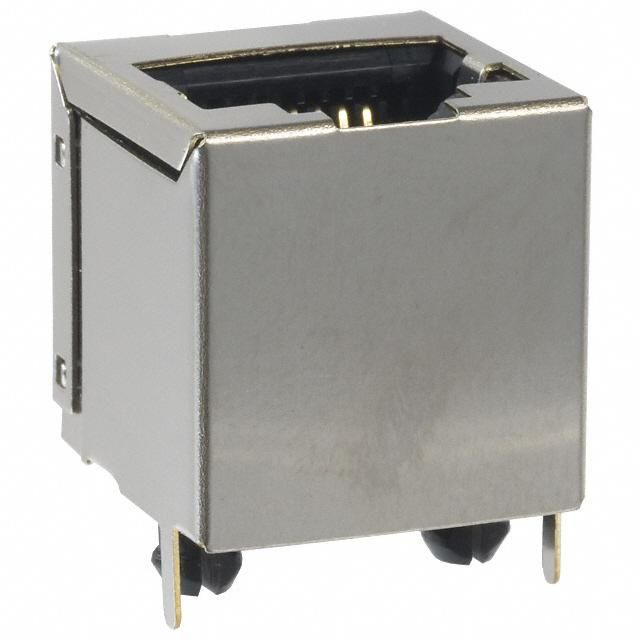

Product Images
