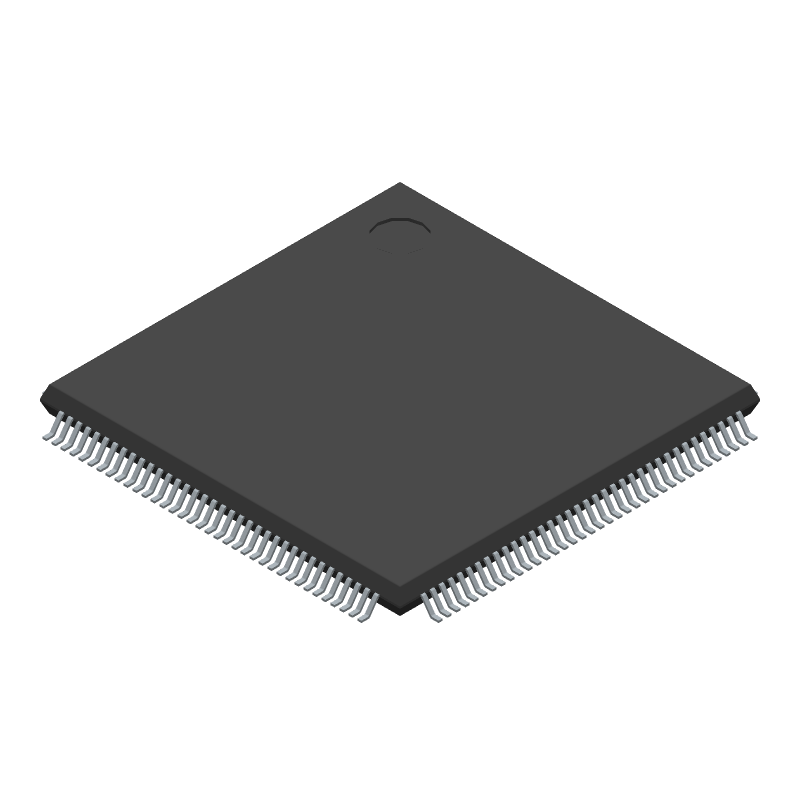

32-bit RISC microcontroller featuring a 480 MHz Arm Cortex-M7 core with DP-FPU and Art Accelerator for high-performance processing. This MCU offers 2MB Flash, 1MB RAM, and an external memory interface, supported by 114 I/O lines and 144 terminals in a 20x20mm QUAD package. Integrated peripherals include PWM channels, ADC, and DMA channels, operating within a 1.8V to 3.6V supply range.
Frequency480
Quick Jump:
Technical Specifications
Stmicroelectronics STM32H743ZIT6 technical specifications.
General
Number of Terminals
144
Terminal Position
QUAD
Width
20
Length
20
Supply Voltage-Nom
3
Supply Voltage-Min
1.8
Supply Voltage-Max
3.6
Clock Frequency-Max
48
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Number of I/O Lines
114
External Data Bus Width
19
Address Bus Width
26
Bit Size
32
Speed
480
PWM Channels
YES
Has ADC
YES
DMA Channels
YES
Compliance
REACH
Compliant
Military Spec
False
