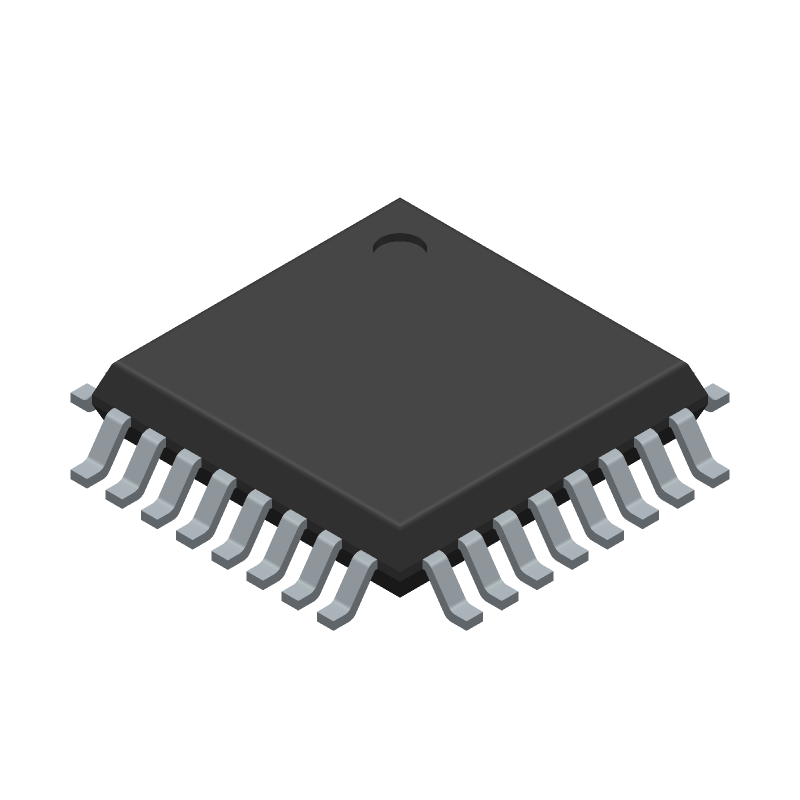

32-bit ultra-low-power Arm Cortex-M0+ microcontroller featuring a 32 MHz maximum CPU clock frequency. Offers 16 Kbytes of Flash memory and 26 I/O lines. Operates with a supply voltage range of 1.8V to 3.6V, with a nominal voltage of 3V. Includes PWM channels, ADC, and DMA channels for versatile application development. This 32-terminal device is housed in a 7x7mm package.
Frequency32
Quick Jump:
Technical Specifications
Stmicroelectronics STM32L010K4T6 technical specifications.
General
Number of Terminals
32
Terminal Position
QUAD
Width
7
Length
7
Supply Voltage-Nom
3
Supply Voltage-Min
1.8
Supply Voltage-Max
3.6
Clock Frequency-Max
32
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Number of I/O Lines
26
External Data Bus Width
0
Address Bus Width
0
Bit Size
32
Speed
32
PWM Channels
YES
Has ADC
YES
DMA Channels
YES
Compliance
REACH
Compliant
Military Spec
False
Datasheet
Stmicroelectronics STM32L010K4T6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32L010K4T6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
