Technical Specifications
Erni 594751 technical specifications.
General
| Contact Material | Copper Alloy, Silver |
| Contact Plating | Silver |
| Current Rating | 15A |
| Depth | 14.8mm |
| Gender | Female |
| Length | 95mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Contacts | 15 |
| Number of Rows | 2 |
| Orientation | Straight |
| Pitch | 10.16mm |
| RoHS Compliant | Yes |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Erni 594751 Datasheet
Download the complete datasheet for Erni 594751 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

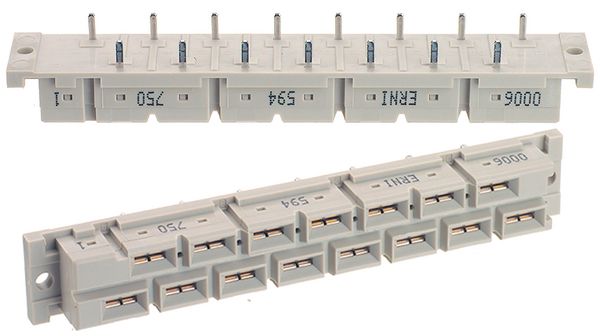

Product Images
