Everlight
19-226/R6G7C-A01/2T
Dual Color LED, Brilliant Red/brilliant Yellow Green, Water Clear, 1mm, ROHS COMPLIANT, MINIATURE, SMD, 4 PIN
Package0605
MountingSurface Mount
Power60mW
Quick Jump:
Technical Specifications
Everlight 19-226/R6G7C-A01/2T technical specifications.
General
Package/Case
0605
Color
Green, Red, Yellow
Depth
1.6mm
Forward Current
25mA
Height
0.4mm
Length
1.3mm
Lens Color
Colorless
Lens Style
Diffused, Colorless, Rectangular
Lens Transparency
Clear
Luminous Intensity
85mcd
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Elements
2
Number of LEDs
2
Package Quantity
2000
Packaging
Tape and Reel
Power Dissipation
60mW
Radiation Hardening
No
Reverse Voltage
5V
RoHS Compliant
Yes
Viewing Angle
120°
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Everlight 19-226/R6G7C-A01/2T Datasheet
Download the complete datasheet for Everlight 19-226/R6G7C-A01/2T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

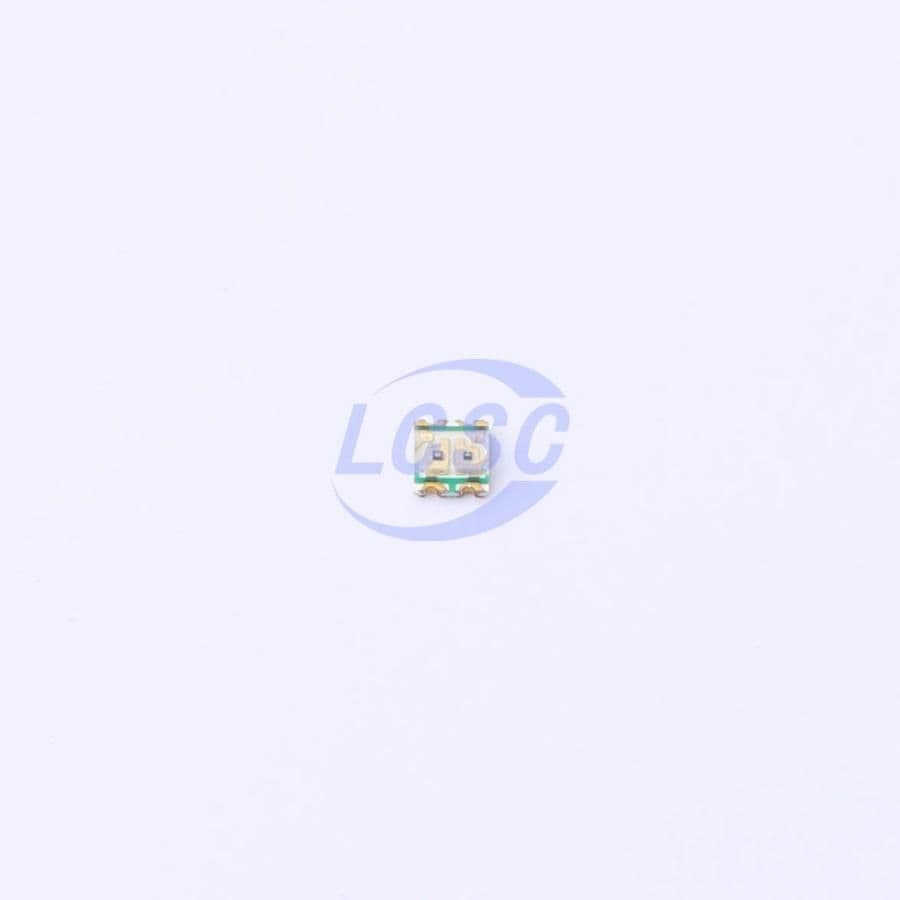

Product Images
