General purpose optocoupler featuring 5kV isolation and a Darlington output. This single-channel device accepts DC input and offers a maximum collector-emitter voltage of 1V. Designed for through-hole mounting in a 6-pin DIP package, it operates across a temperature range of -55°C to 100°C with a maximum output voltage of 55V. The component is RoHS compliant and supplied in rail/tube packaging.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Everlight 4N33M technical specifications.
General
| Package/Case | DIP |
| Collector-emitter Voltage-Max | 1V |
| Input Type | DC |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 55V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Package Quantity | 65 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Everlight 4N33M Datasheet
Download the complete datasheet for Everlight 4N33M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

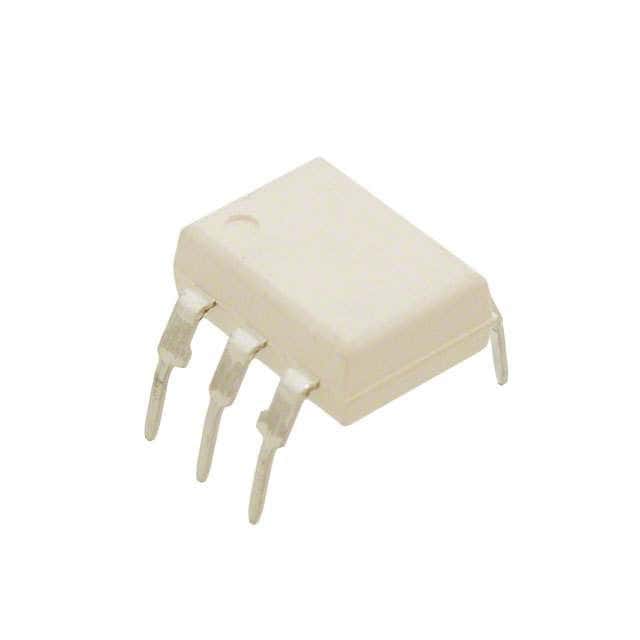

Product Images
