The Everlight EL1017(TA)-VG is an SOP packaged NPN optocoupler with a collector-emitter breakdown voltage of 80V and a maximum collector current of 50mA. It operates over a temperature range of -55°C to 110°C and is RoHS compliant. The device is suitable for use in applications requiring electrical isolation, such as industrial control systems and medical devices.
PackageSOP
MountingSurface Mount
PolarityNPN
Power250mW
Quick Jump:
Technical Specifications
Everlight EL1017(TA)-VG technical specifications.
General
| Approvals | VDE |
| Package/Case | SOP |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Saturation Voltage | 300mV |
| Collector-emitter Voltage-Max | 300mV |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Max Collector Current | 50mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 80V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Consumption | 250mW |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Everlight EL1017(TA)-VG Datasheet
Download the complete datasheet for Everlight EL1017(TA)-VG to view detailed technical specifications.
No datasheet is available for this part.

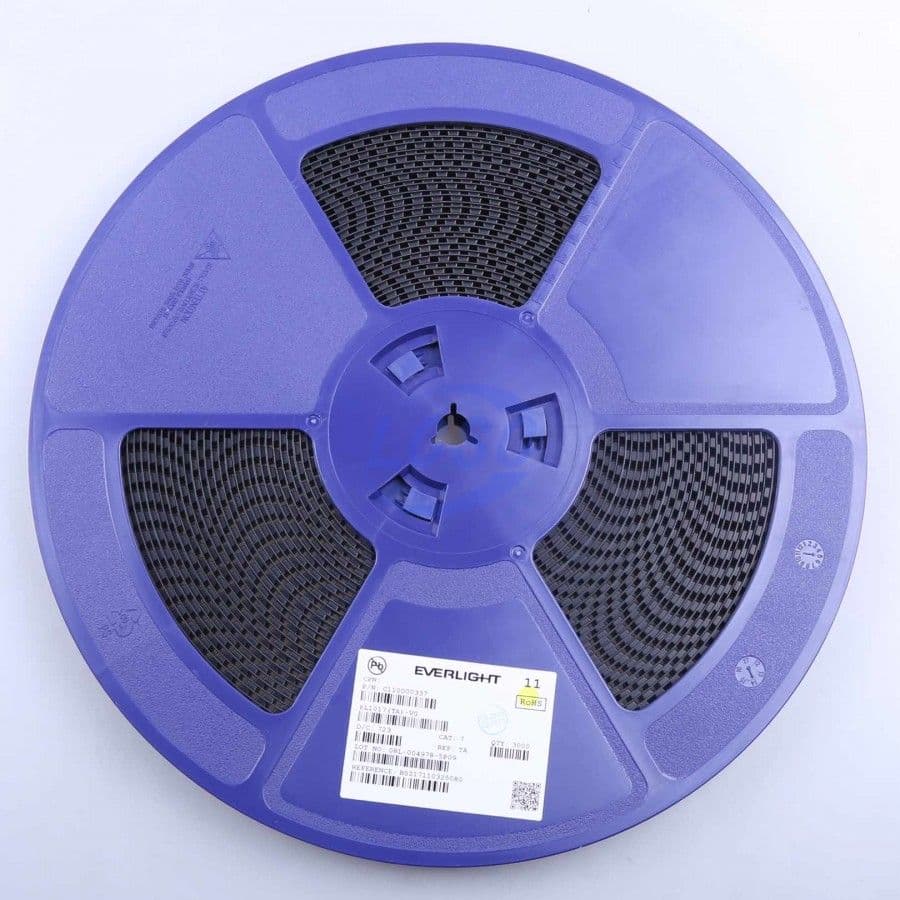

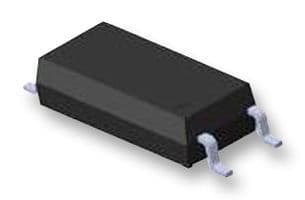

Product Images
