PackageSOP
MountingSurface Mount
PolarityNPN
Power250mW
Quick Jump:
Technical Specifications
Everlight EL1019(TA)-VG technical specifications.
General
Approvals
VDE
Package/Case
SOP
Collector Emitter Breakdown Voltage
80V
Collector Emitter Saturation Voltage
300mV
Collector-emitter Voltage-Max
300mV
Input Current
50mA
Input Type
DC
Isolation Voltage
5kV
Max Collector Current
50mA
Max Input Current
60mA
Max Operating Temperature
110°C
Min Operating Temperature
-55°C
Max Output Voltage
80V
Max Power Dissipation
250mW
Mount
Surface Mount
Number of Channels
1
Output Current per Channel
50mA
Output Voltage
80V
Package Quantity
2000
Packaging
Tape and Reel
Polarity
NPN
Power Consumption
250mW
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Everlight EL1019(TA)-VG Datasheet
Download the complete datasheet for Everlight EL1019(TA)-VG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

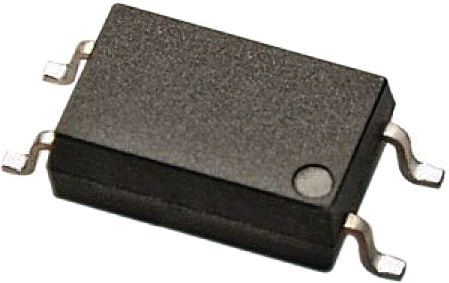

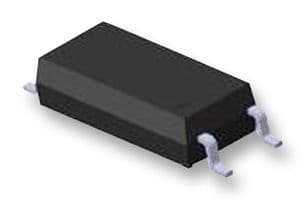

Product Images
