Transistor output optocoupler featuring 3.75kV isolation and 80V collector-emitter breakdown voltage. This 1-element device offers a 260% current transfer ratio and a maximum collector current of 50mA. Designed for surface mount applications in a compact SSOP package, it operates across a wide temperature range from -55°C to 125°C. The component is UL approved, halogen-free, and RoHS compliant.
PackageSSOP
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Everlight EL3H7(B)(TA)-VG technical specifications.
General
Approvals
UL
Package/Case
SSOP
Collector Emitter Breakdown Voltage
80V
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
80V
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
260%
Fall Time
18000ns
Forward Current
50mA
Input Type
DC
Isolation Voltage
3.75kV
Lead Free
Lead Free
Max Collector Current
50mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Voltage
80V
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Package Quantity
5000
Packaging
Tape and Reel
Power Dissipation
200mW
Radiation Hardening
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Everlight EL3H7(B)(TA)-VG Datasheet
Download the complete datasheet for Everlight EL3H7(B)(TA)-VG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

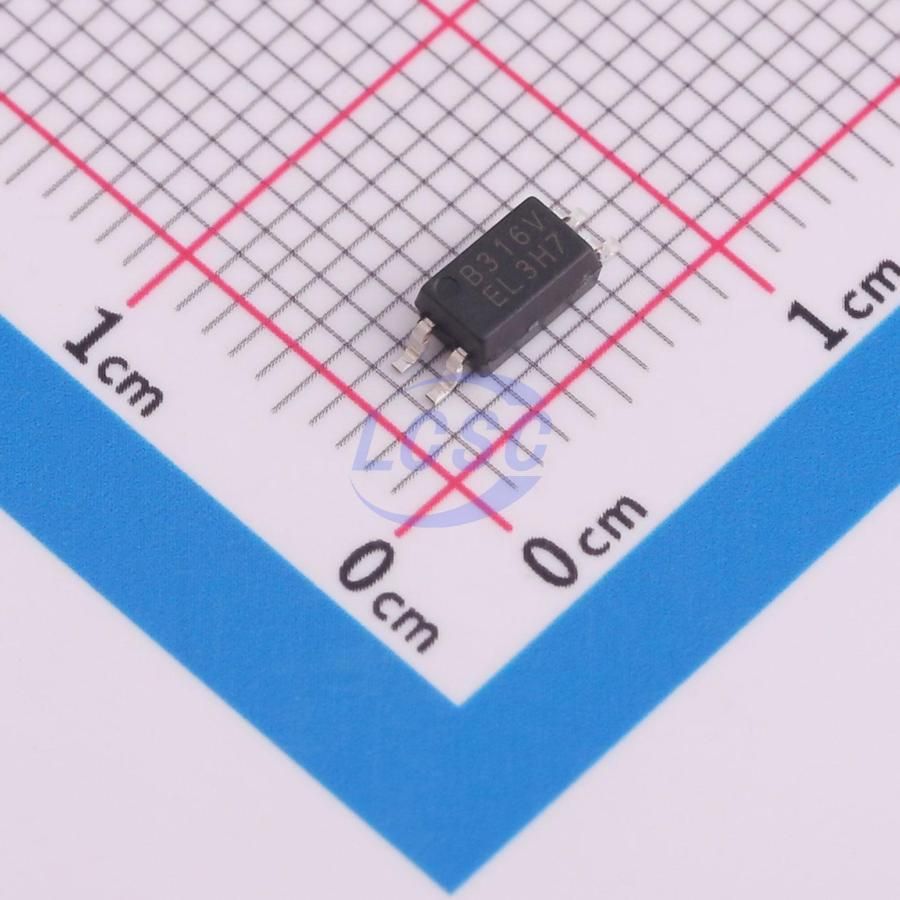

Product Images
