Everlight
EL814
AC Input-Transistor Output Optocoupler, 1-Element, 5000V Isolation, ROHS COMPLIANT, DIP-4
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Everlight EL814 technical specifications.
General
Package/Case
DIP
Collector Emitter Saturation Voltage
200mV
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
300%
Input Type
AC
Max Input Current
60mA
Max Operating Temperature
110°C
Min Operating Temperature
-55°C
Max Output Voltage
80V
Max Power Dissipation
200mW
Mount
Through Hole
Number of Channels
1
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Everlight EL814 Datasheet
Download the complete datasheet for Everlight EL814 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

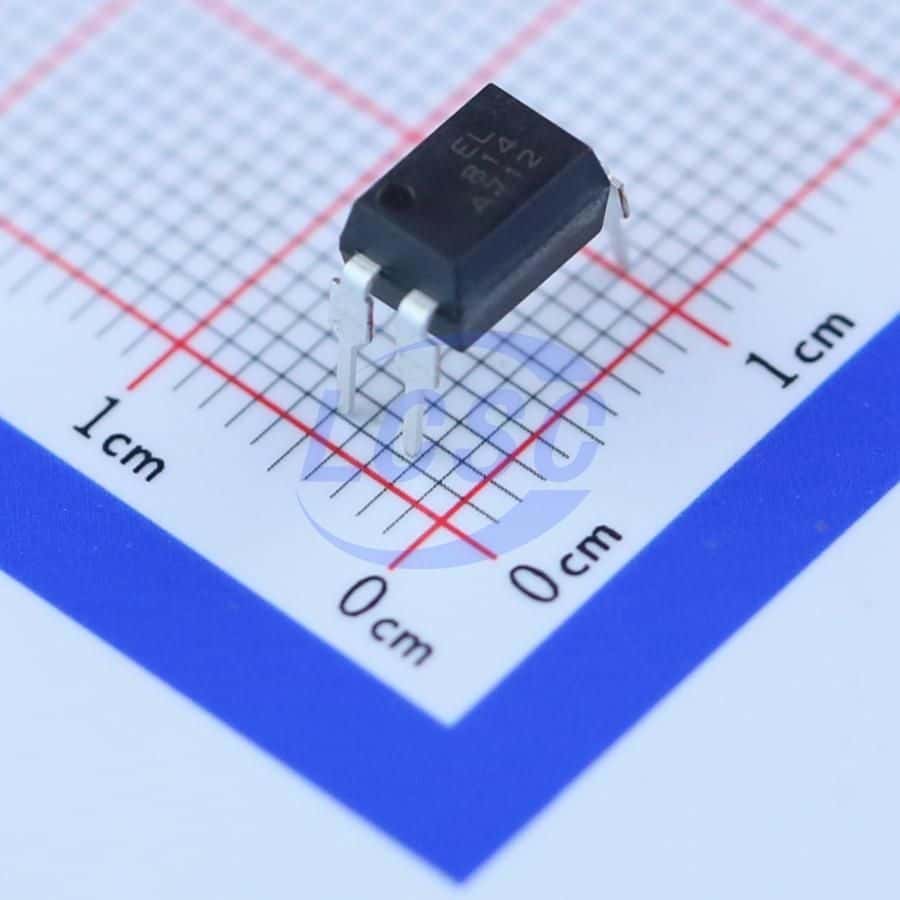

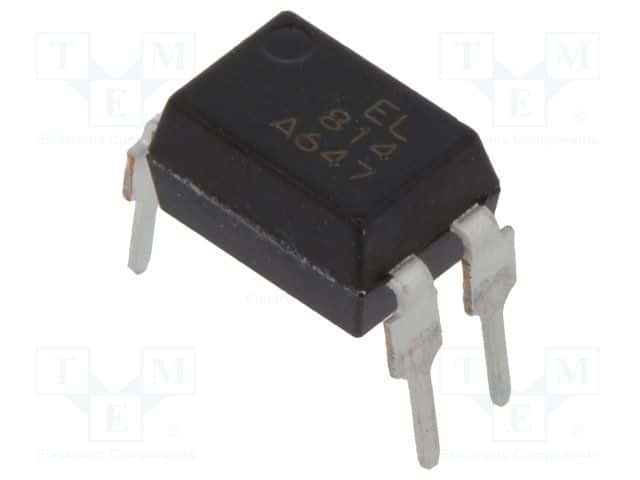

Product Images
